coolant fan not working

1997 MERCURY SABLE
200,000 MILES
Avatar
GMASON002
  • MEMBER
  • 3 POSTS
The car is a 97 motor 96. After the car sat for 3 yrs I did the engine swap. The was some mice damage noticed on the seatbeats. Coolant fans would work unless I unplugged the cts. I've replaced with new the ccrm,cts,temp. sensor for the gage and thermastat. All new coolant w/ flush. The only things I haven't changed is the water pump and pcm. Any help would be greatly appreciated.
Mar 12, 2012 at 4:54 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
The fans would work only when the coolant reaches a certain temperature. Is the engine overheating and fans not coming on?
Do they come on when the A/C is turned on?
Apr 25, 2020 at 12:39 PM
Avatar
GMASON002
  • MEMBER
  • 3 POSTS
They don't come on when the a/c is on and the temp gauge will sit at the top end of hot just below the red line. It hasn't boiled out any coolant. Before I changed engines the temp gauge never went above half way on normal.
Apr 25, 2020 at 12:39 PM
Advertisement
Avatar
GMASON002
  • MEMBER
  • 3 POSTS
I had it running for about 45 mins at an idle. Reving up to 3500 rpms at times trying to get the fans to come on.
Apr 25, 2020 at 12:39 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

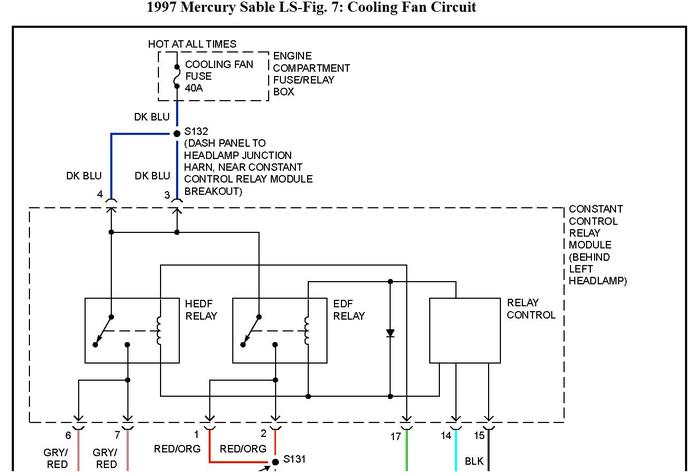

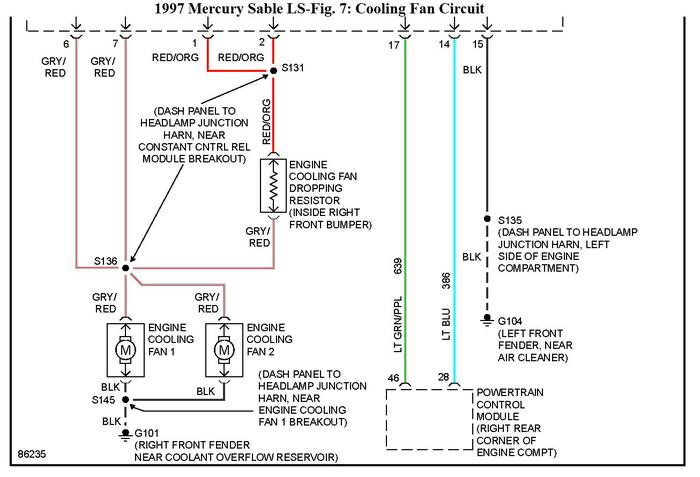

Here are the cooling fan schematics.

Start by checking the fuses, relays and wiring connections.
Apr 25, 2020 at 12:39 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
oops
Images (Click to enlarge)
Attached Media
Attached Media
Apr 25, 2020 at 12:39 PM
