Main Bearing Bolts Torque secuence Diagram Suzuki XL7 2.7 2003
Jan 2, 2013 at 4:55 PM
Main bearing torque and assembly process for lower end?
2003 SUZUKI XL7
HECTIN
- MEMBER
- 2 POSTS
- FOLLOW
Advertisement
Hello,

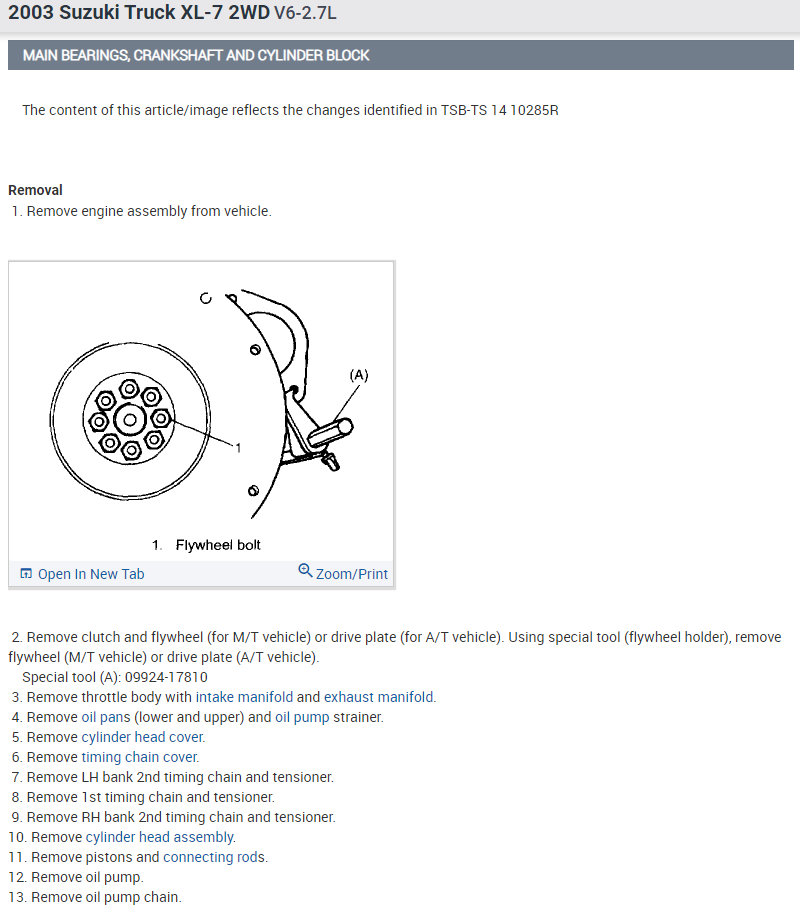

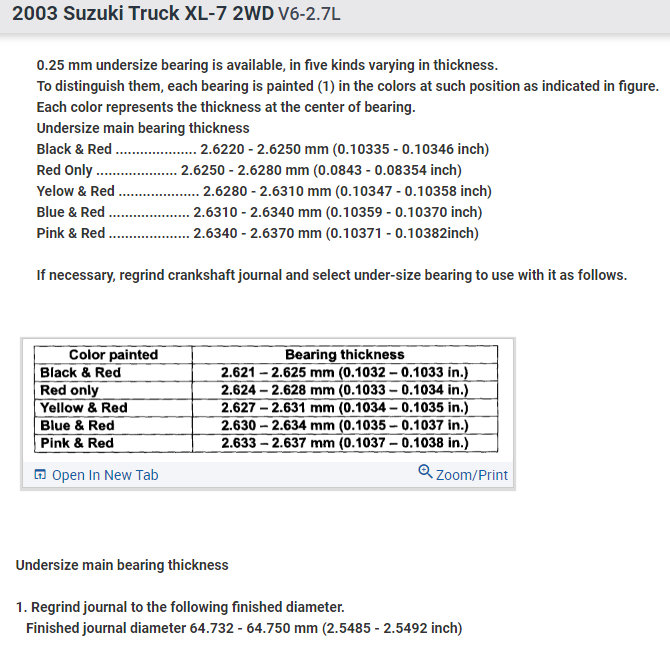

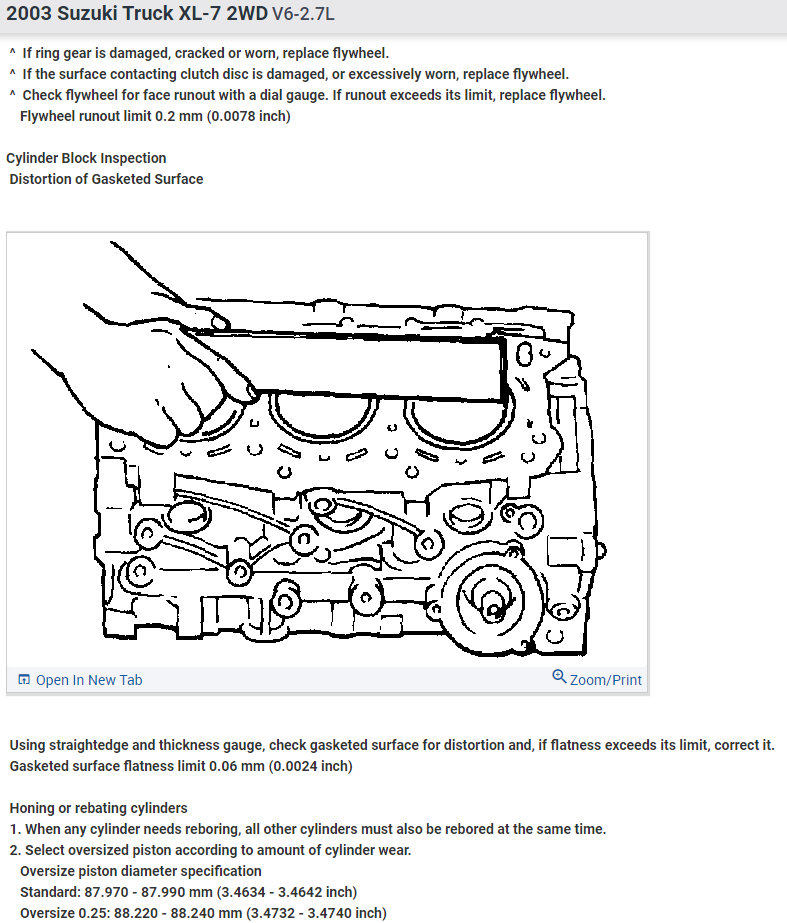

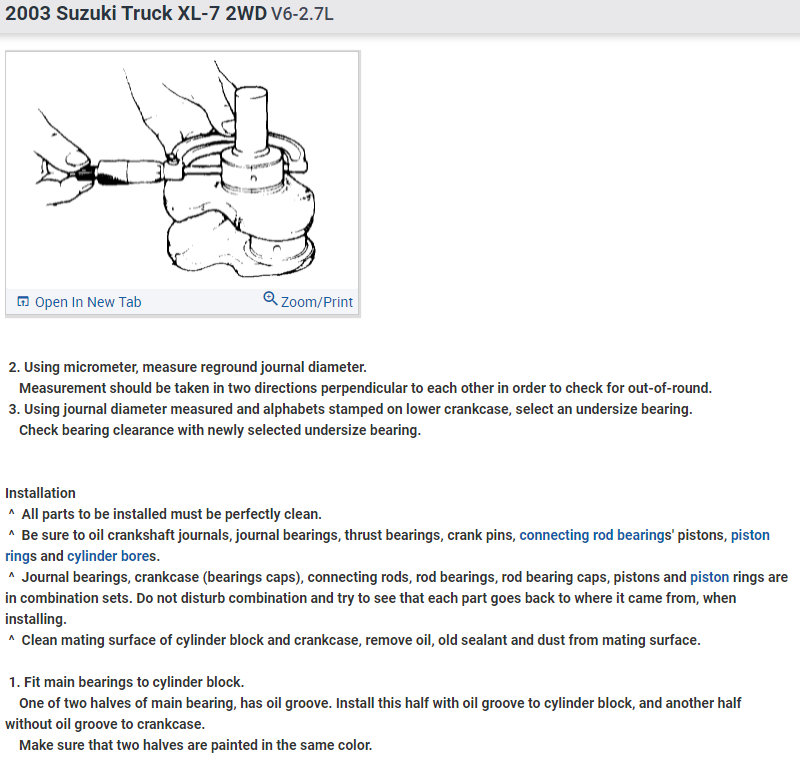

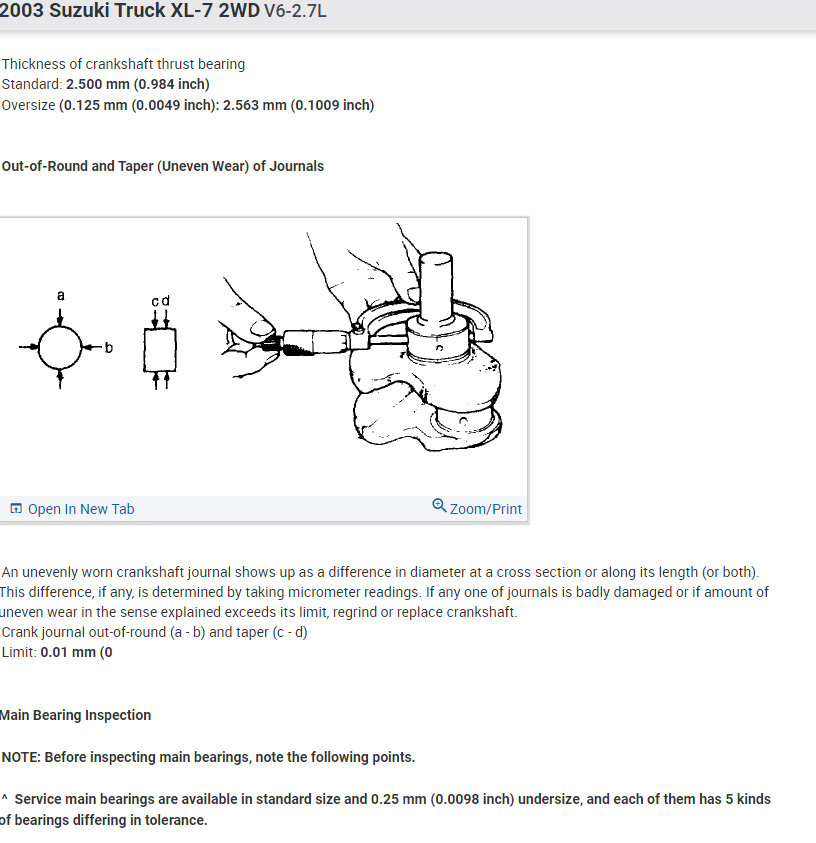

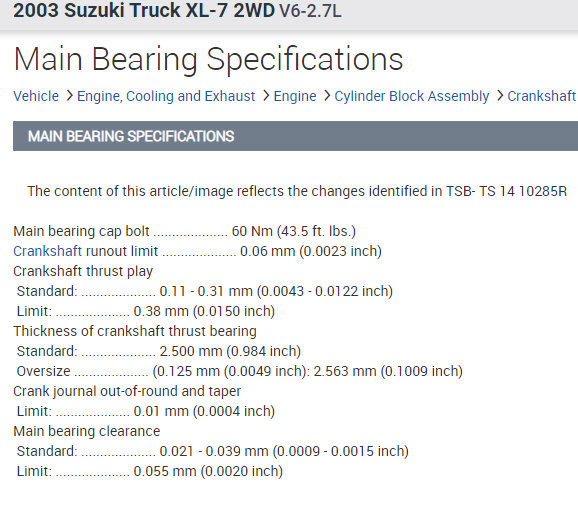

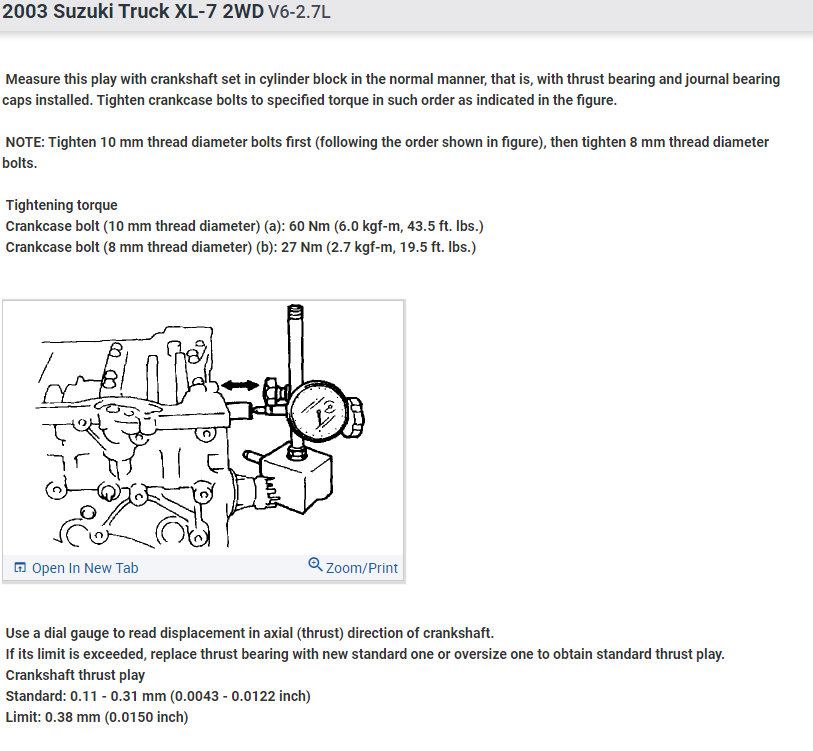

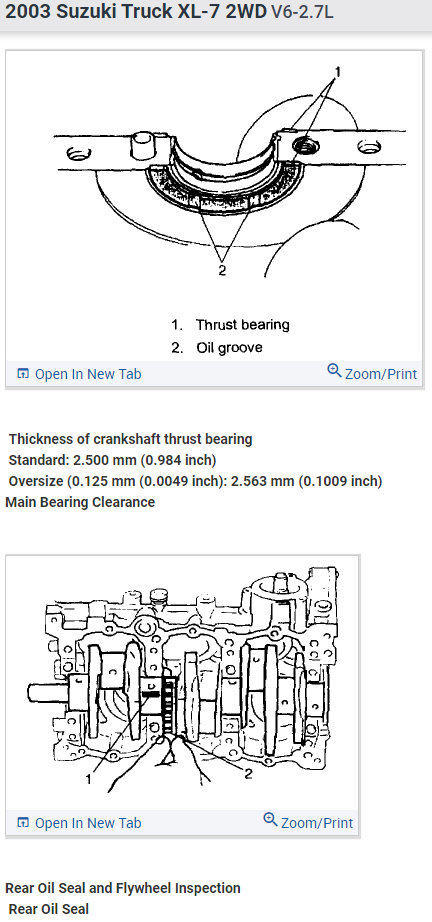

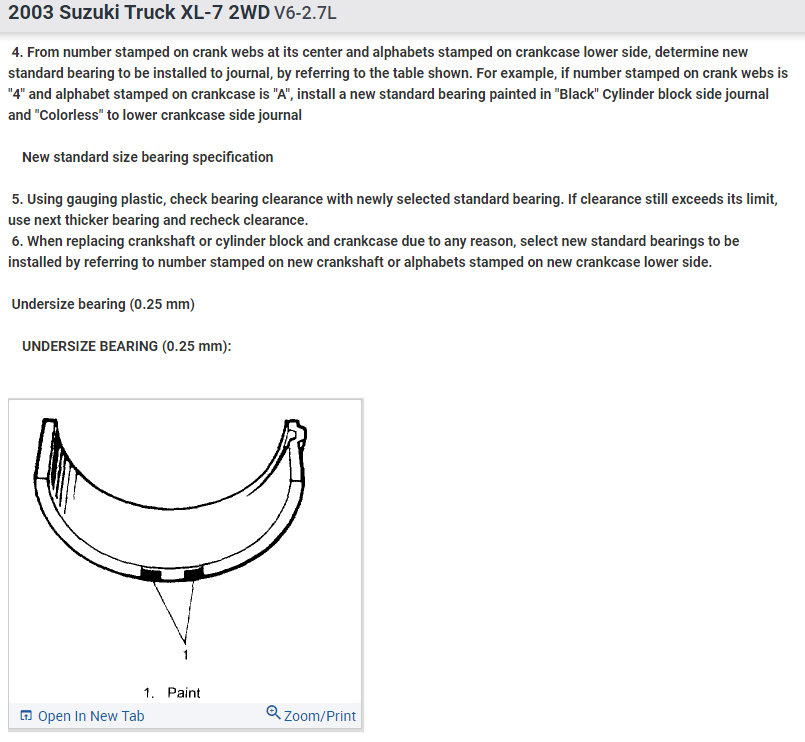

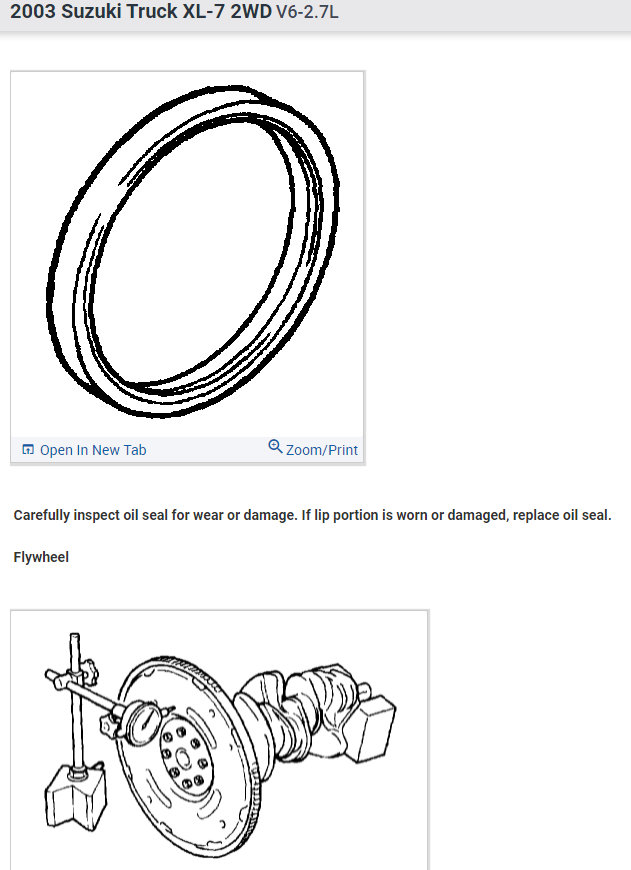

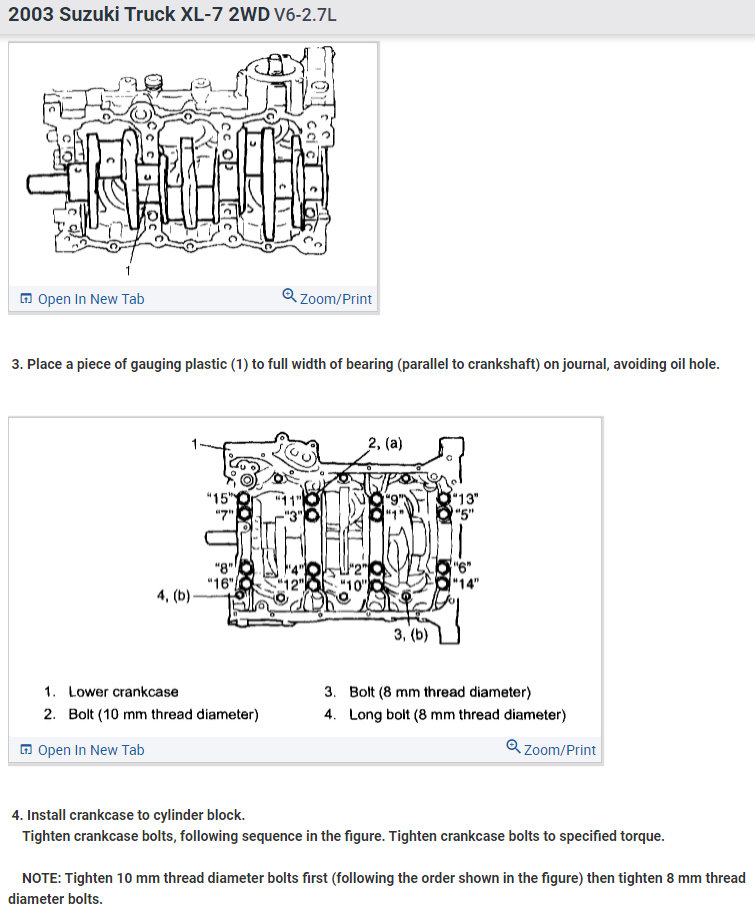

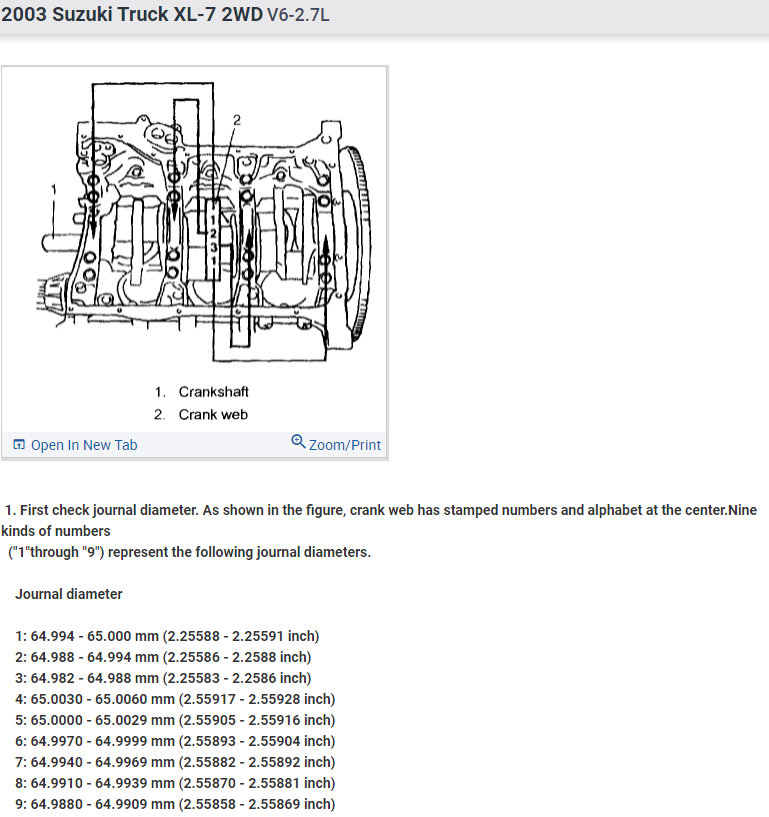

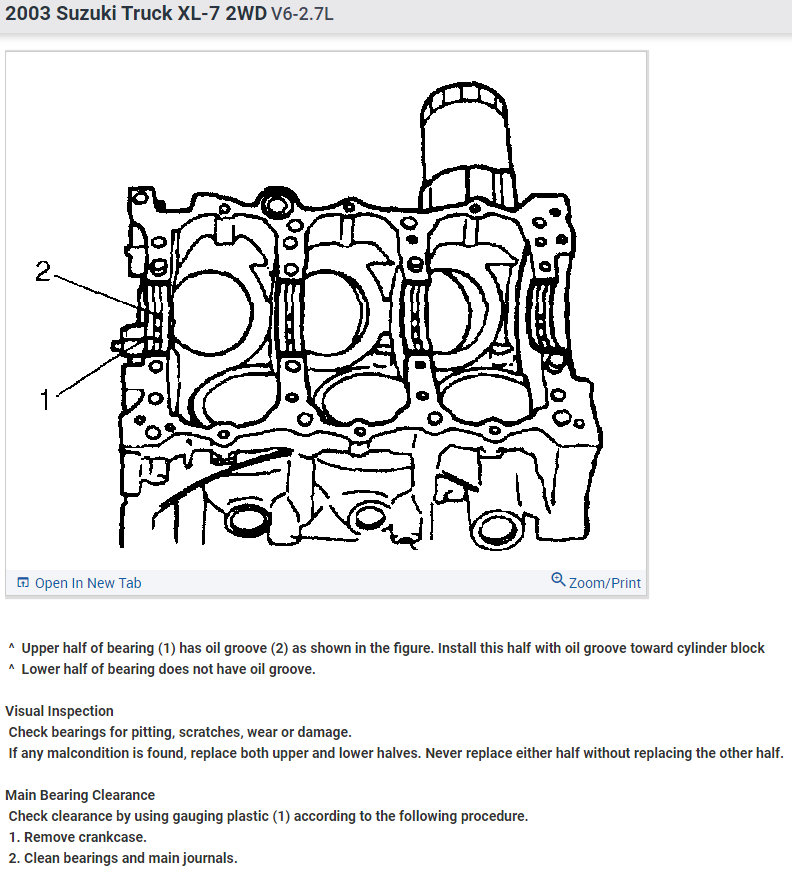

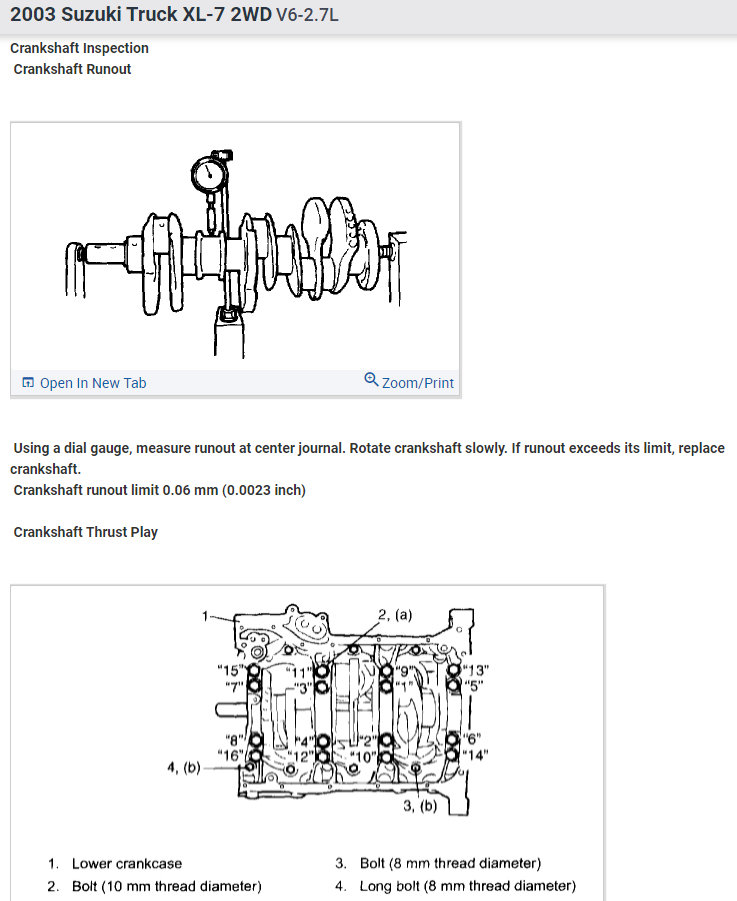

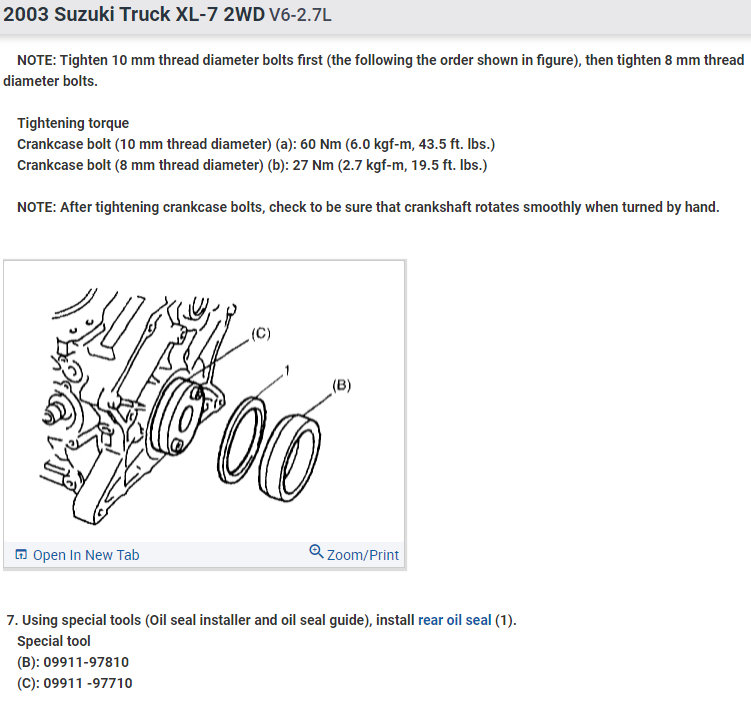

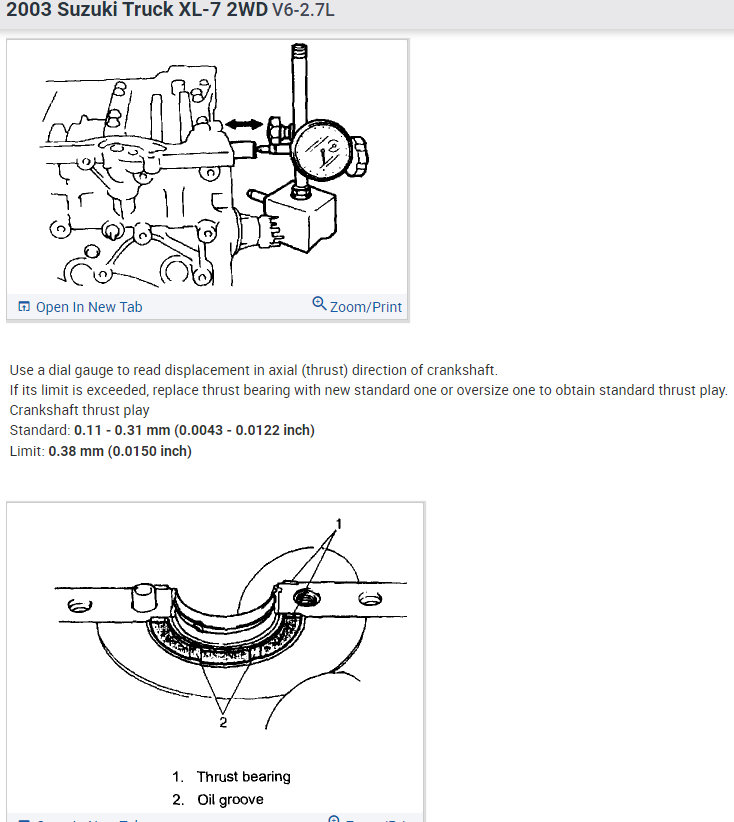

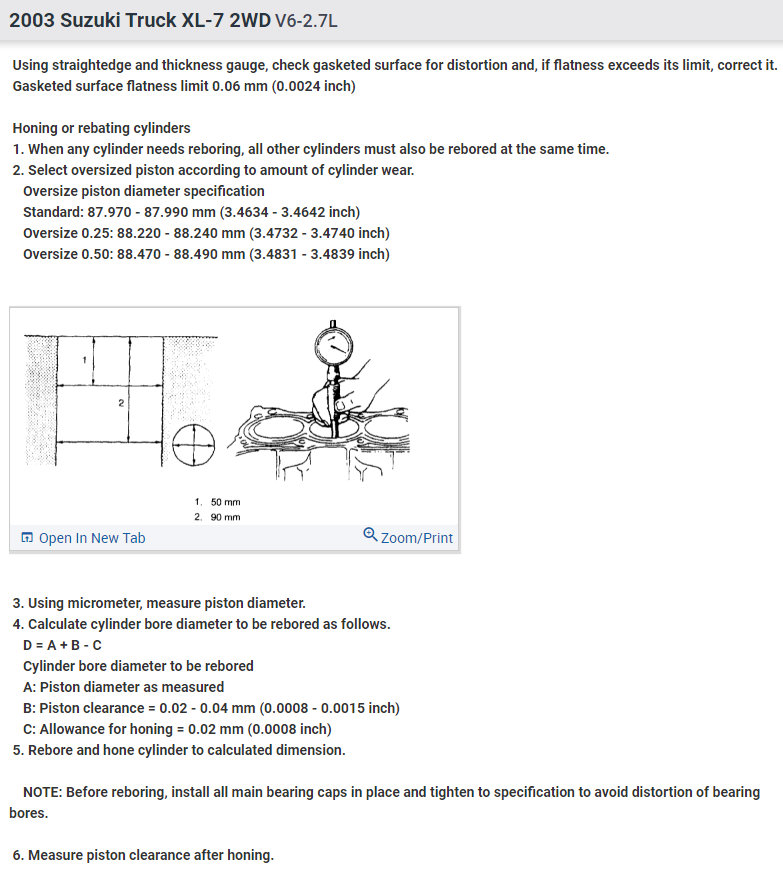

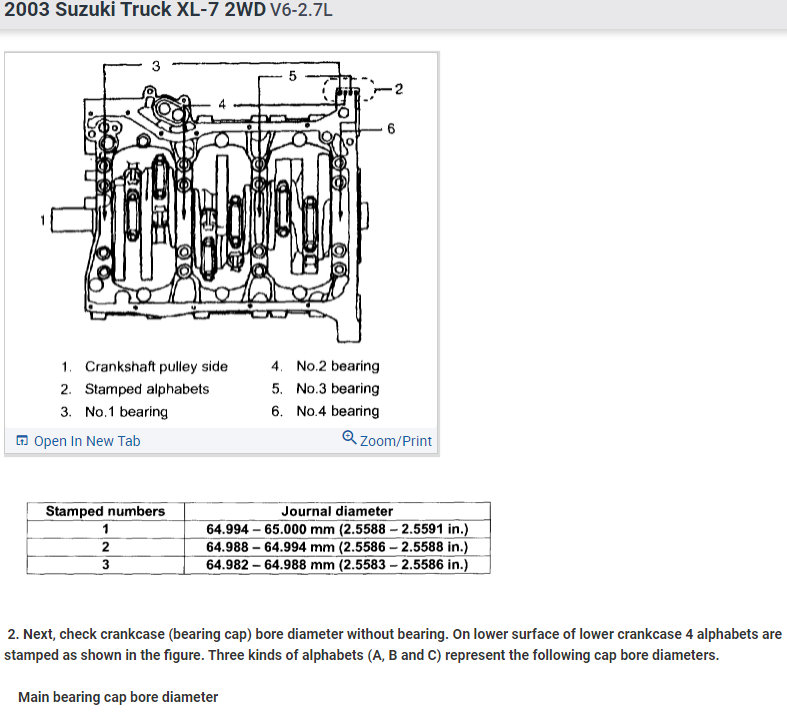

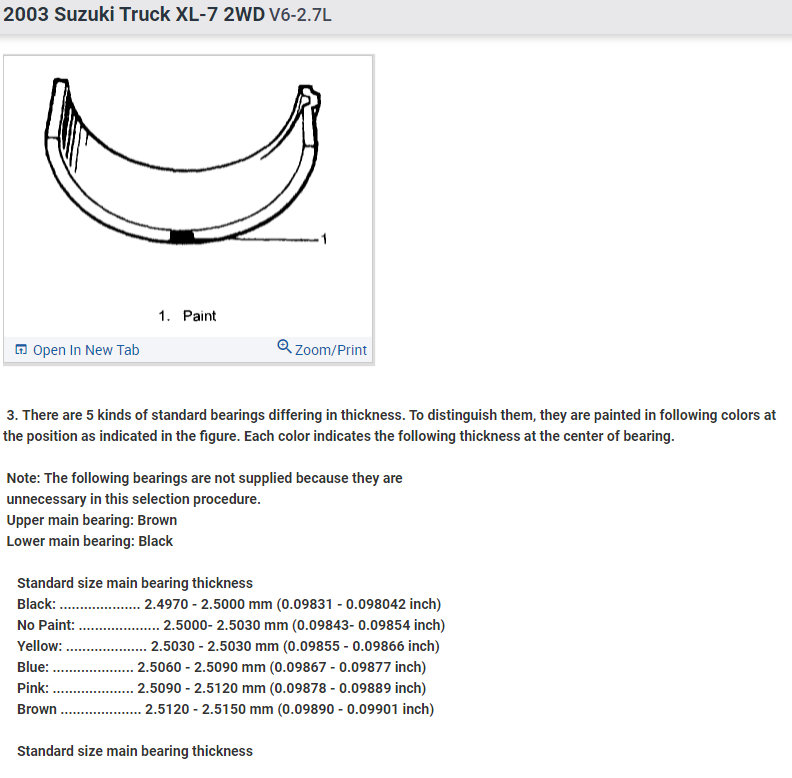

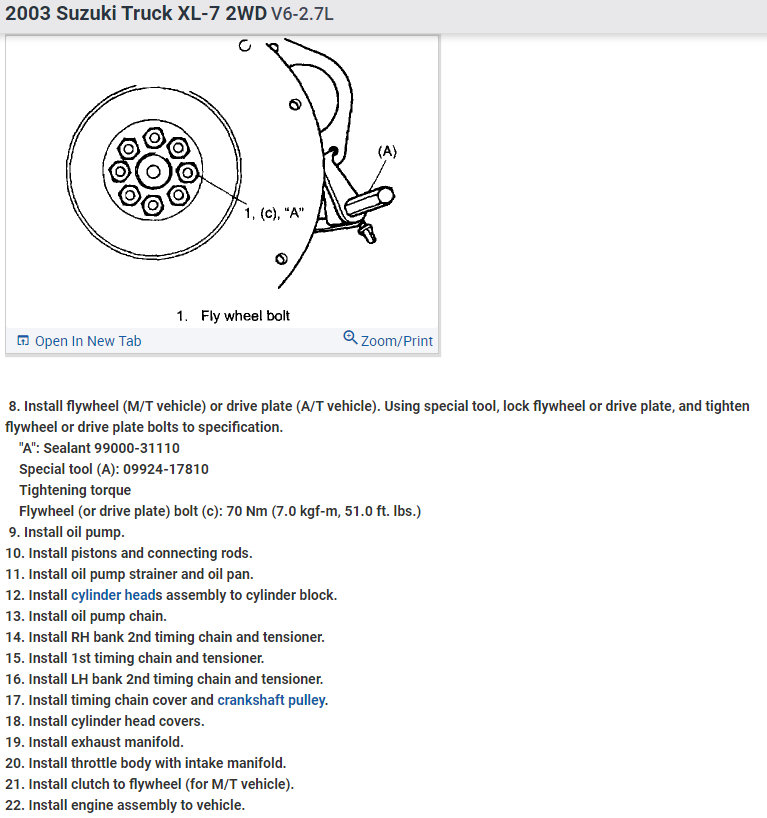

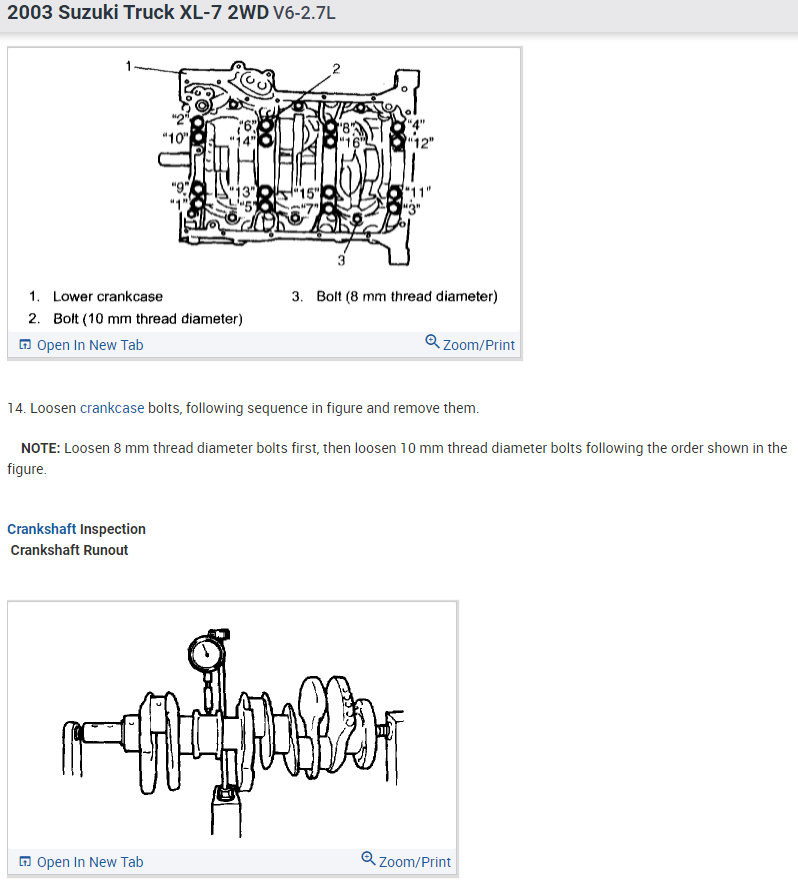

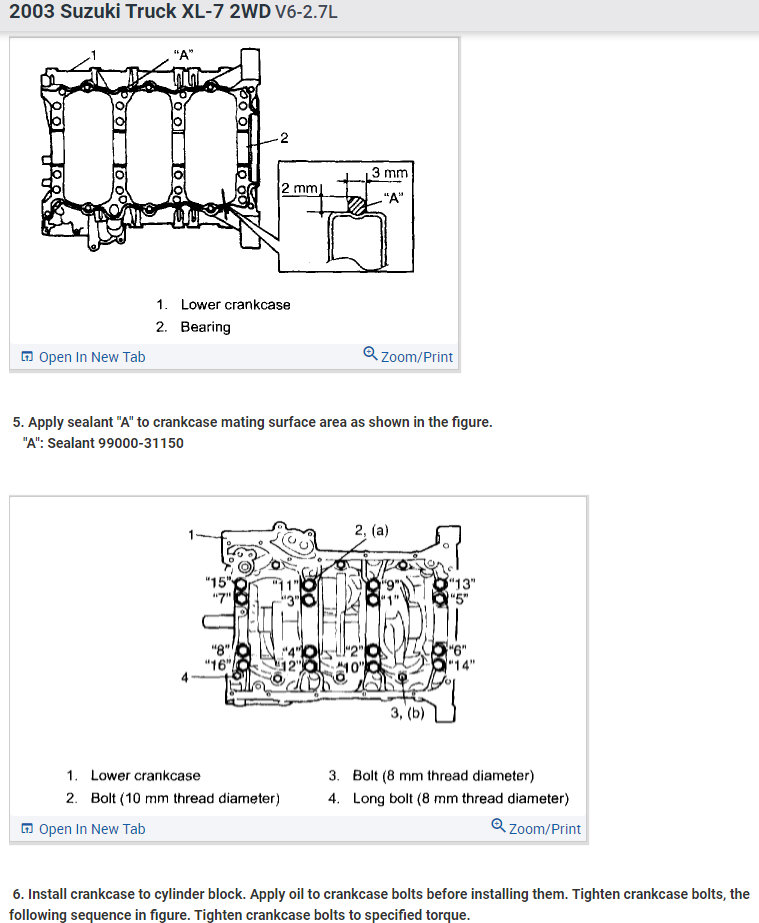

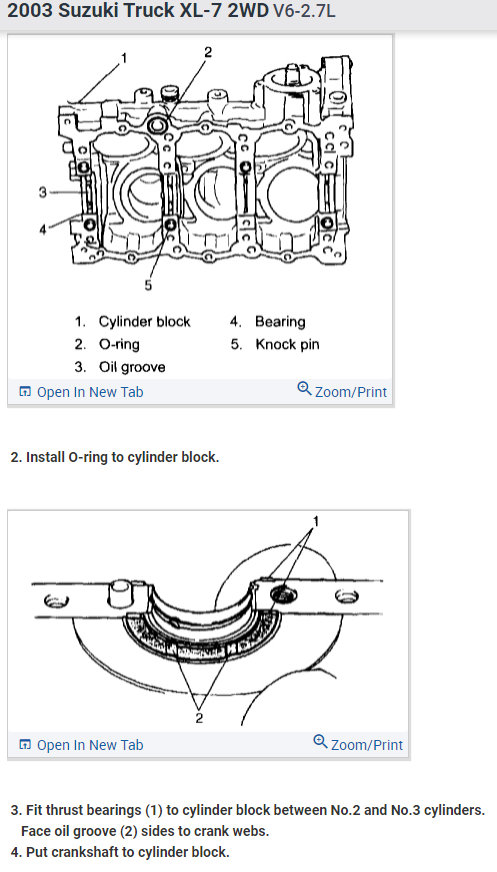

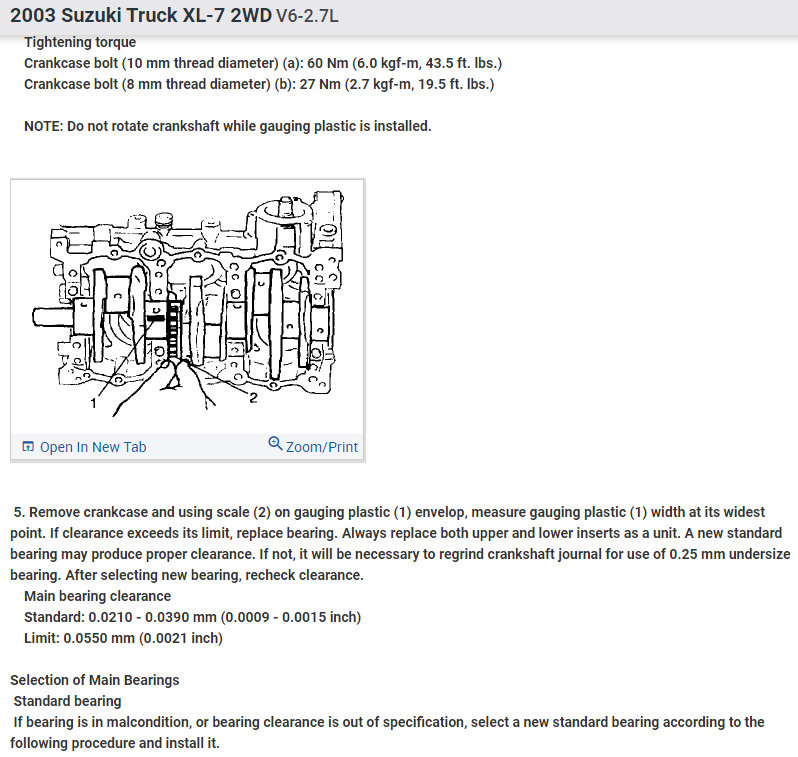

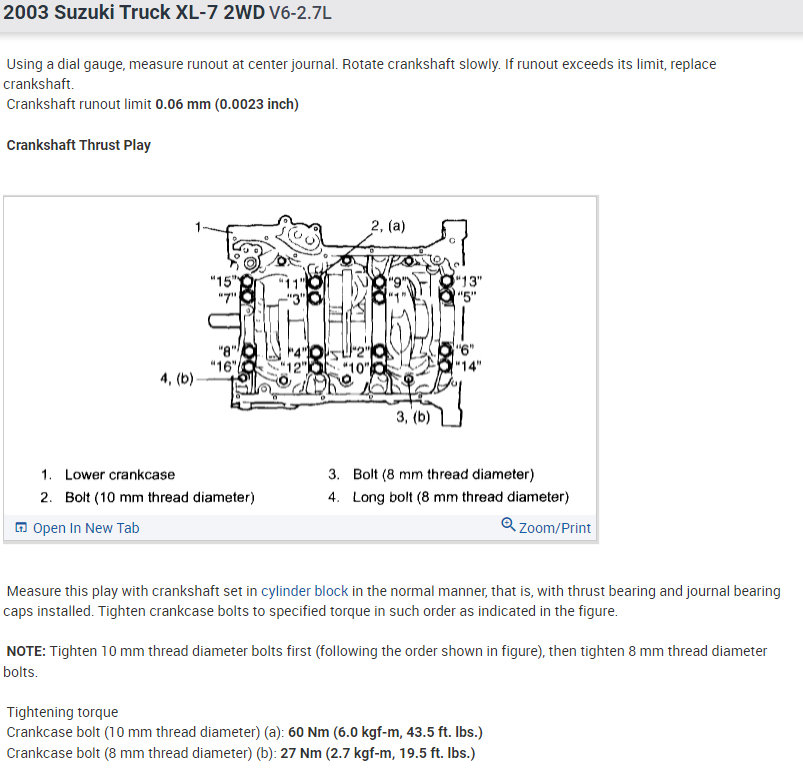

I have attached the replacement procedure including torque sequence and diagrams for the main bearings.
Please let me know of any questions.
https://www.youtube.com/c/2carpros/featured
https://www.2carpros.com/articles/how-a-car-engine-works
Thank you.
I have attached the replacement procedure including torque sequence and diagrams for the main bearings.
Please let me know of any questions.
https://www.youtube.com/c/2carpros/featured
https://www.2carpros.com/articles/how-a-car-engine-works
Thank you.
Images (Click to enlarge)
Jul 19, 2021 at 12:17 PM
