radiator fans not coming on

Hello,

It sounds like you have one of three things that can be wrong but with a few easy tests we should be able to figure it out. First would be a fuse next a relay and third the fan motor is no good.

Here are a few guides and diagrams to help us get started.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

and

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

and

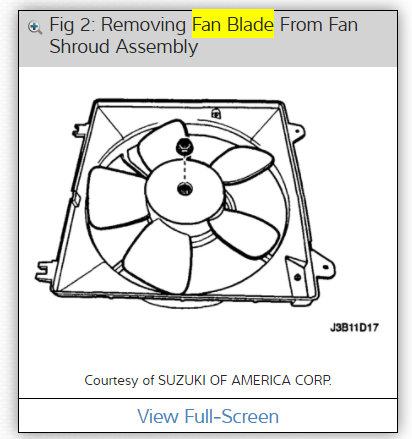

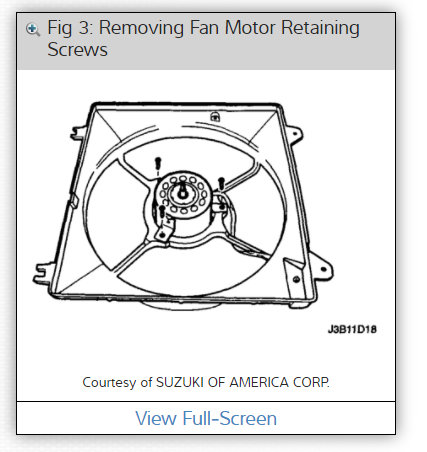

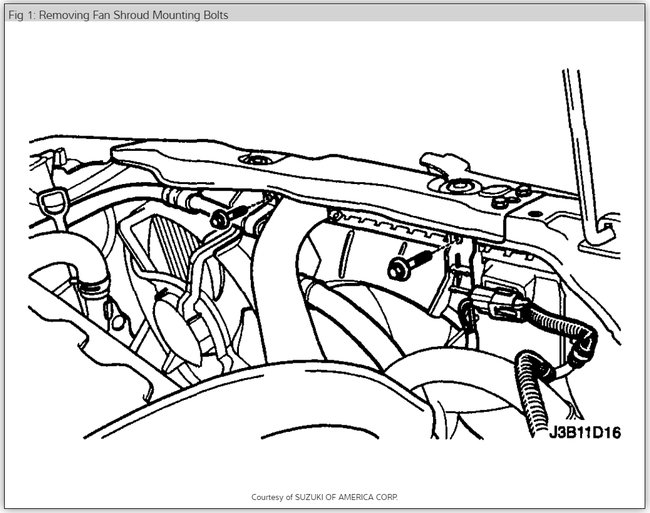

https://www.2carpros.com/articles/replace-electric-fan-motor

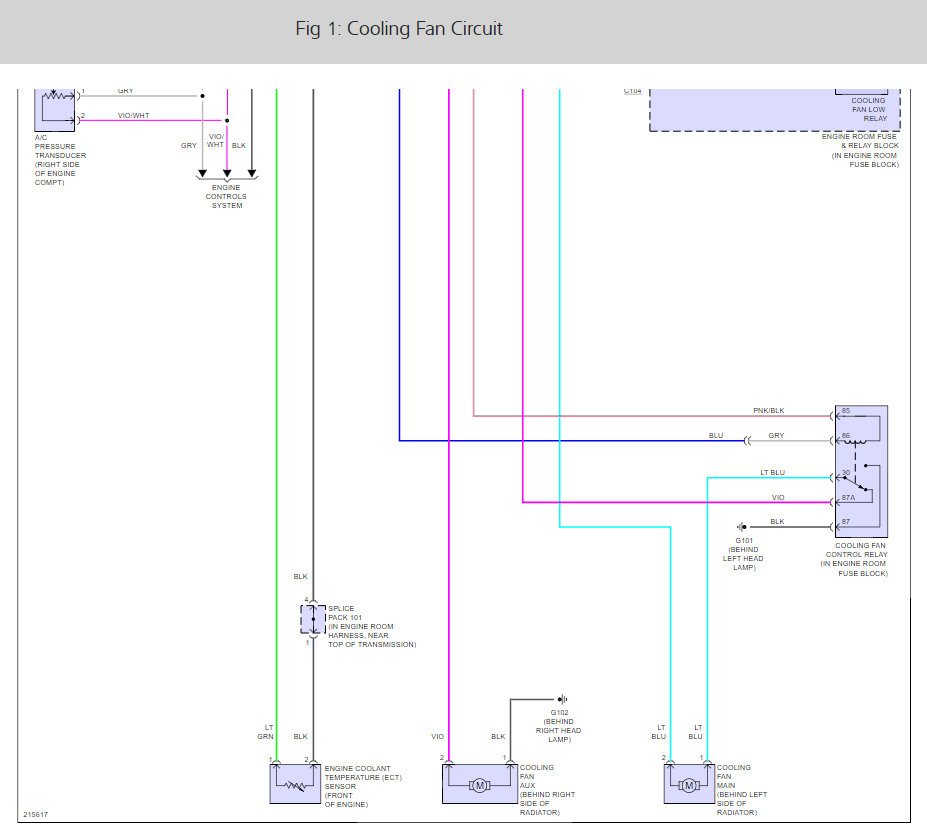

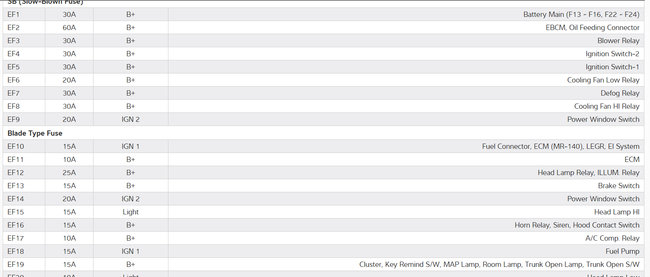

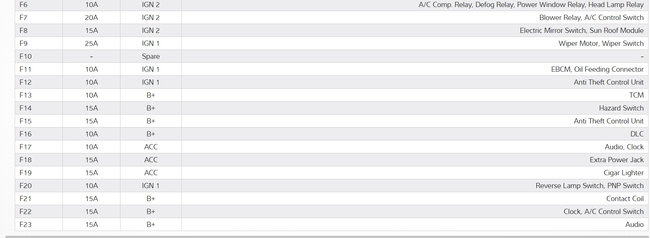

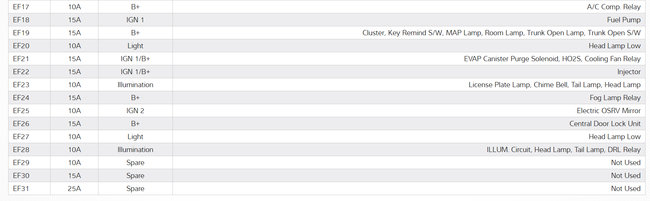

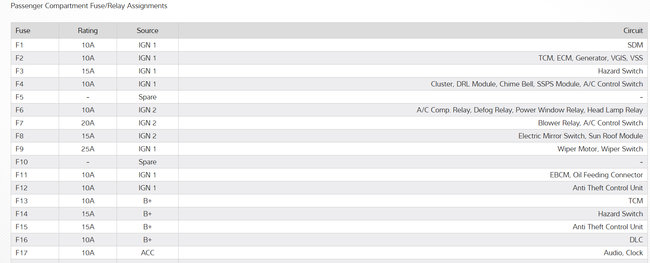

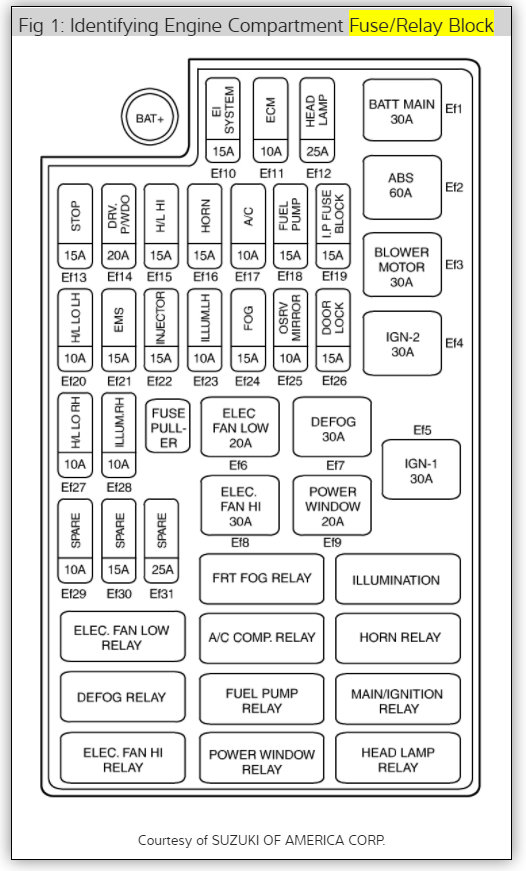

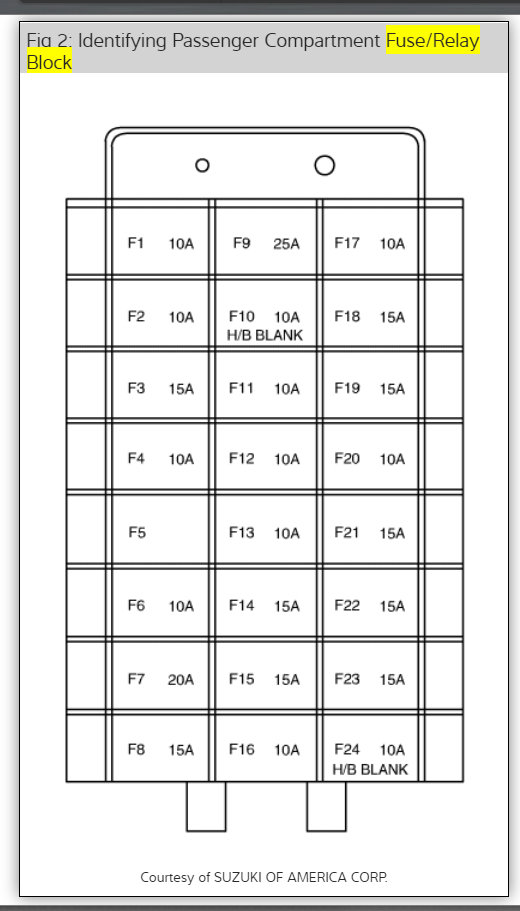

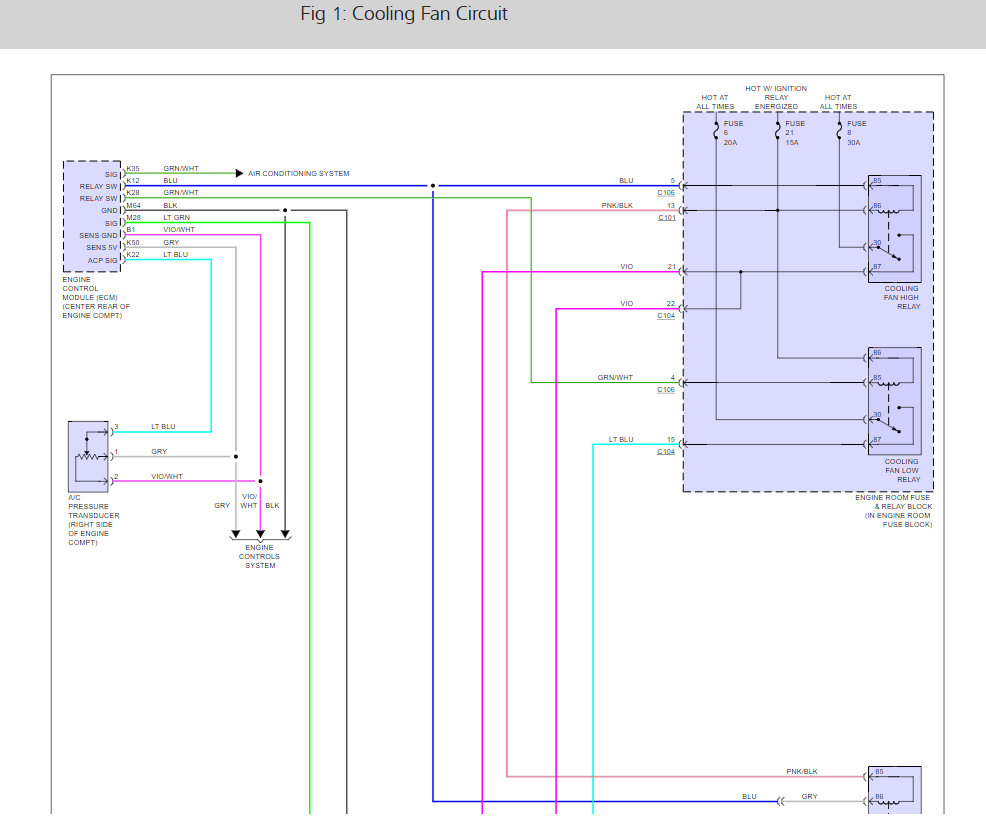

Here are the diagrams (BELOW)

Let us know what happens and please upload pictures or videos of the problem.

Cheers, Ken

Which wires are the positive and negative wires for the
Cooling Fan Relay Switch for the driver side cooling fan
On a 2005 Suzuki Forenza so that i can directly hook the cooling fan to the car battery so that the cooling fan will come on to keep the car from overheating

Im just trying to keep the car from overheating so i can make it to a mechanic i have already checked for leaks its just my coolant tank that is leaking i do not have a cracked head gasket i had looked at that first

repost I will not do that due to the chance of a fire. maybe someone will but I doubt it.

Engine Mechanical problem
2005 Suzuki Forenza 4 cyl Front Wheel Drive Automatic 40000 miles

both fans on engine stopped but belt on left side is on.could this be some kind of sensor?

My fans quit too.. I followed the diagram on the earlier post and found a bad relay.... replaced it for about $25.00 and its back on the road
