Can you tell me where the fuses are and what they go too?

2008 VOLKSWAGEN EOS
90,000 MILES • 2.0L • 4 CYL • 4WD • AUTOMATIC
Avatar
MONETPLESHETTE
  • MEMBER
  • 1 POST
need schematic - diagram location to the fuse panels?
Dec 29, 2014 at 6:10 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
No problem. I am attaching that info below. However, here is a guide that will help with testing and replacing fuses if you need this as well:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

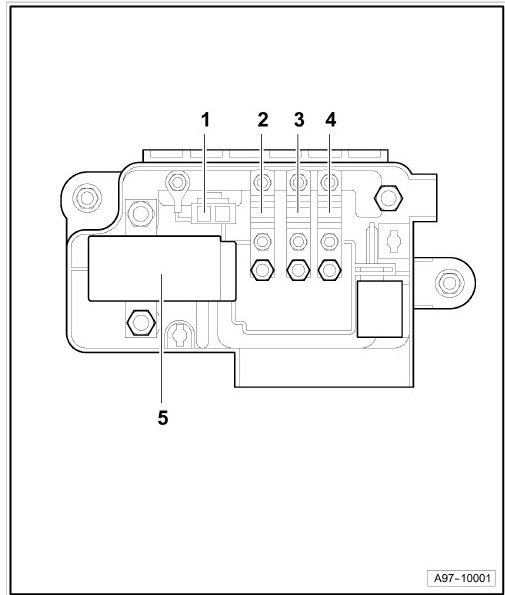

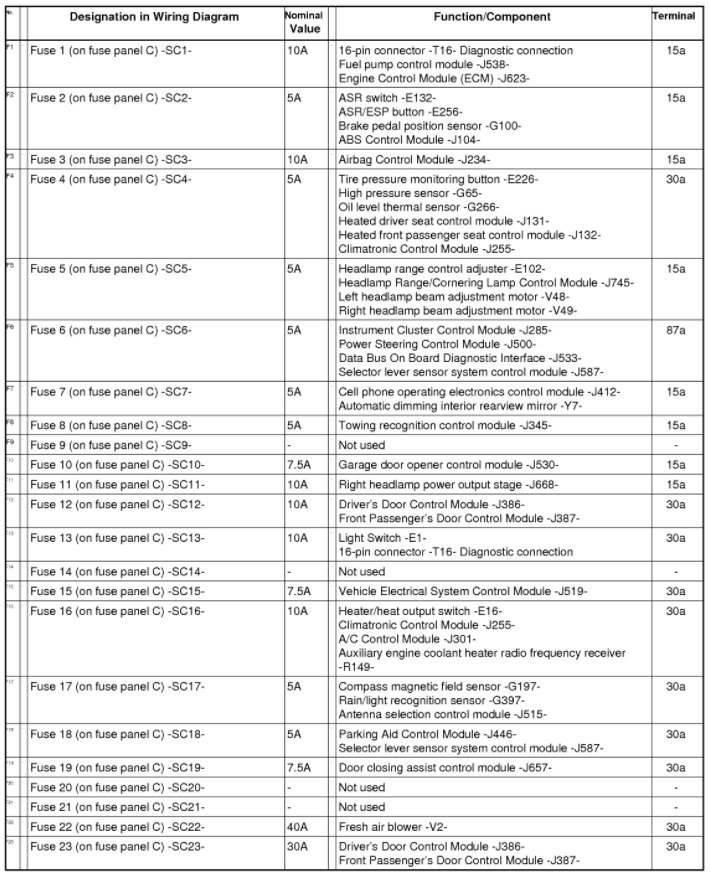

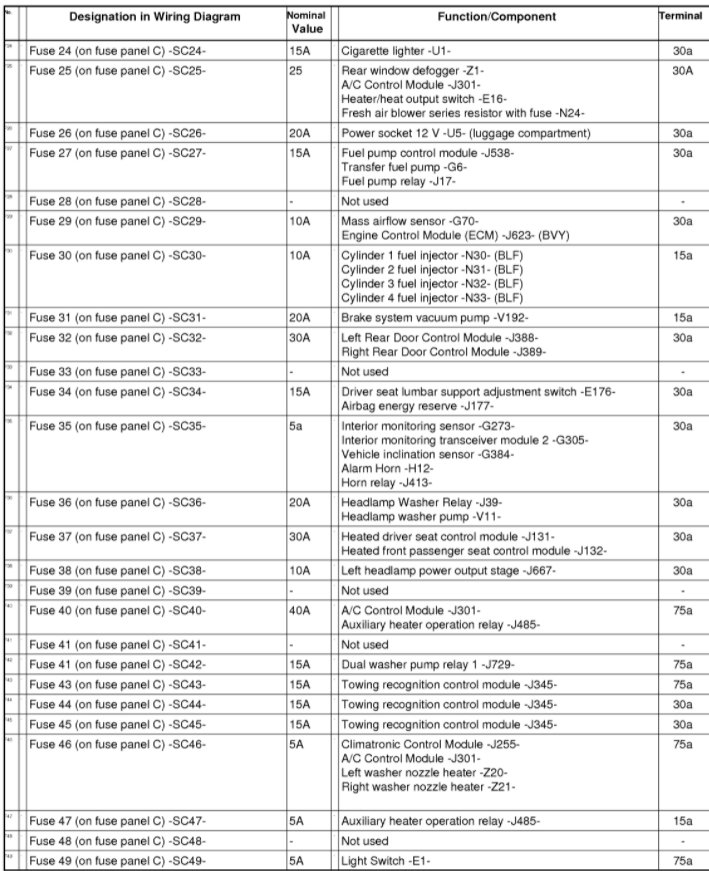

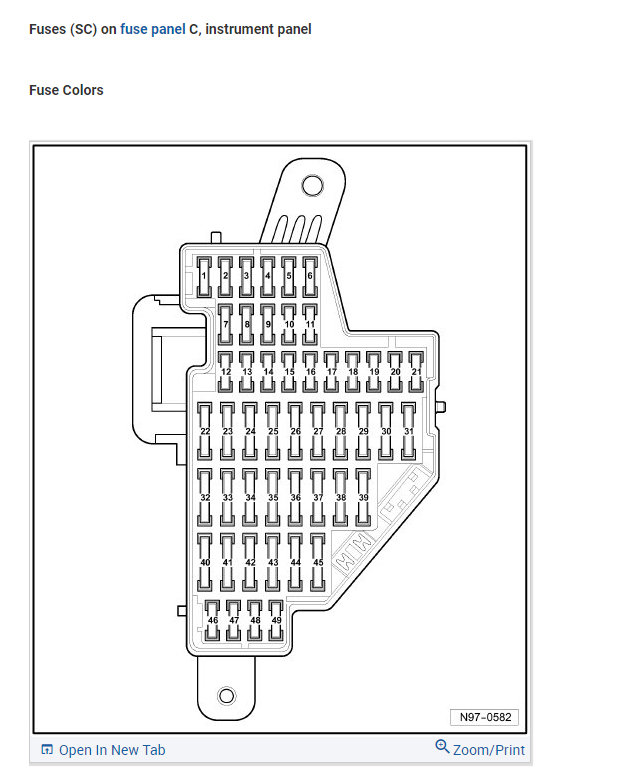

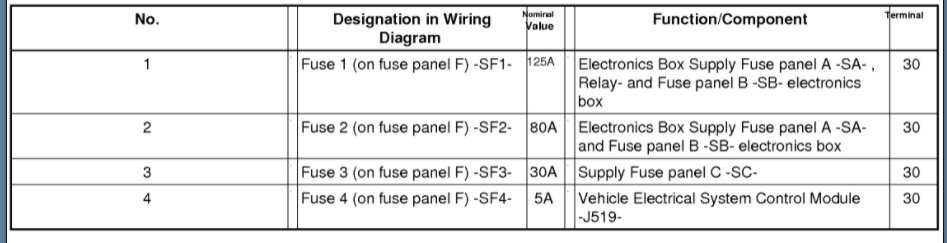

Below are the fuse box details. Please run through this material and let us know if you have questions. Thanks
Jul 3, 2021 at 7:38 AM
