AC compressor fuse location

2009 HONDA CIVIC
100,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
My compressor is not working with a full charge where is the fuse?
Nov 20, 2012 at 11:30 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hello,

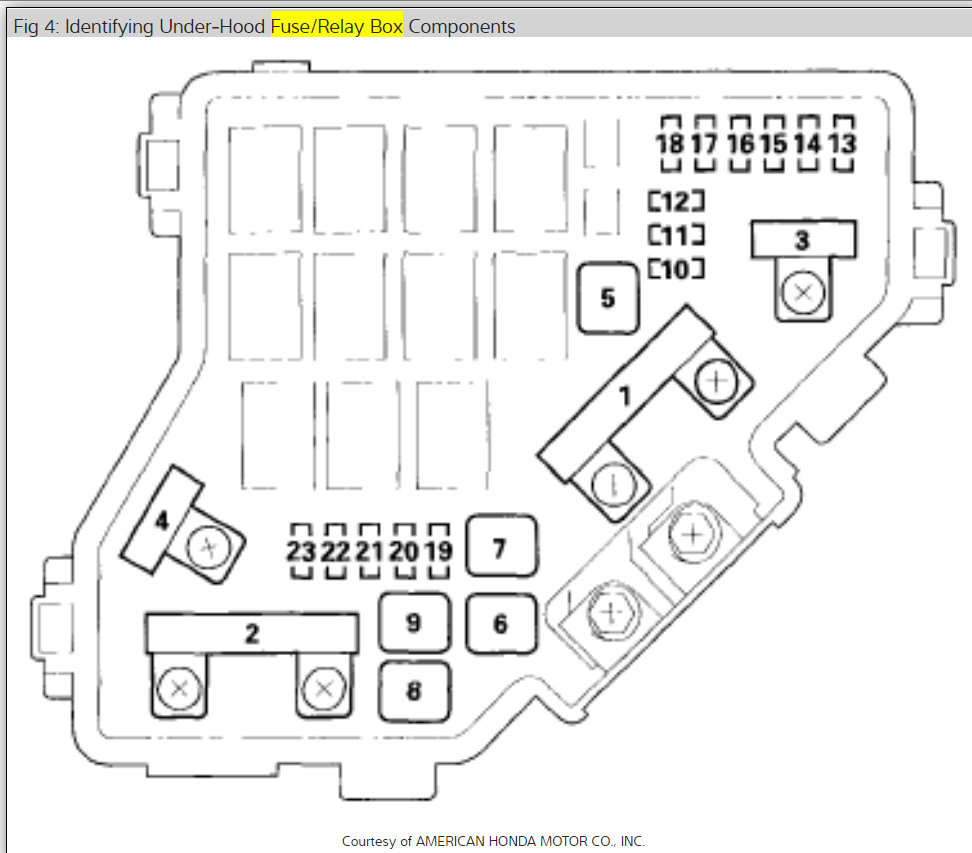

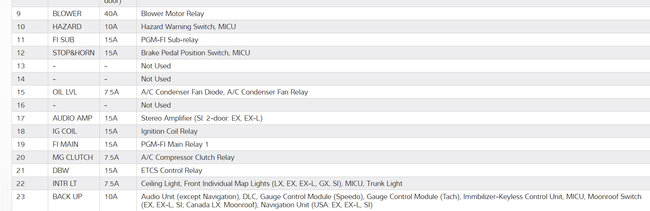

The fuse for the air conditioner is Fuse # 20 (7.5 A) underhood fuse panel here is a guide to help you check for power and the fuse location in the diagrams below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

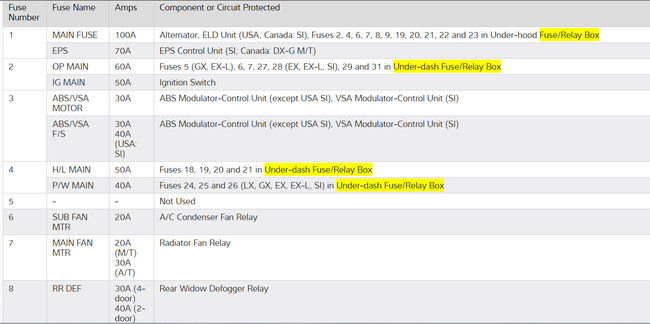

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Nov 21, 2012 at 11:08 AM
Avatar
JMARTINEZ1
  • MEMBER
  • 1 POST
2007 Honda Civic

Can you please tell me the location of the fuse box in the vehicle? are there two or one fuse box?
Jan 16, 2019 at 1:51 PM (Merged)
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hi JMARTINEZ1, There are 2 fuse boxes.


https://www.2carpros.com/forum/automotive_pictures/192750_FuseBoxHood07Civic_1.jpg


https://www.2carpros.com/forum/automotive_pictures/192750_FuseBoxDash07Civic_1.jpg

Jan 16, 2019 at 1:51 PM (Merged)
