Can I get the torque specs for the top end for the cams and head, along with cam position sensor location?

1996 SATURN SC2
187,000 MILES • 1.9L • 4 CYL • 2WD • MANUAL
Avatar
ERIC PEDIGO
  • MEMBER
  • 1 POST
Need torque specs for the top end for the cams and head, along with cam position sensor location, I'm rebuilding the heads and valvetrain, knowing the valve lash and torque sequence is essential tool for anyone trying to get the heads rebuilt correctly.

96 Saturn SC2 LLO Twin-cam 16 Valve 1.9l inline 4 cylinder
Nov 29, 2024 at 9:28 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Here is the information to help you get the job done.

This vehicle does not have a Camshaft Position Sensor. The manufacturer does make references to "CAM" in some of the trouble code descriptions, but this is not a reference to a Camshaft Position Sensor.

This engine is equipped with hydraulic valve lifters, there is no provision for adjustment.

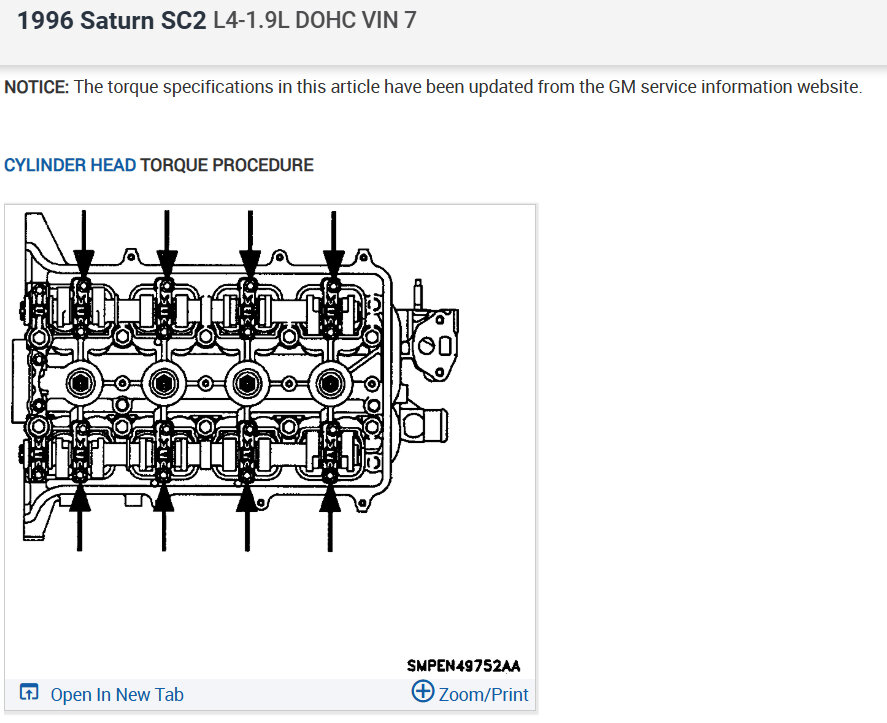

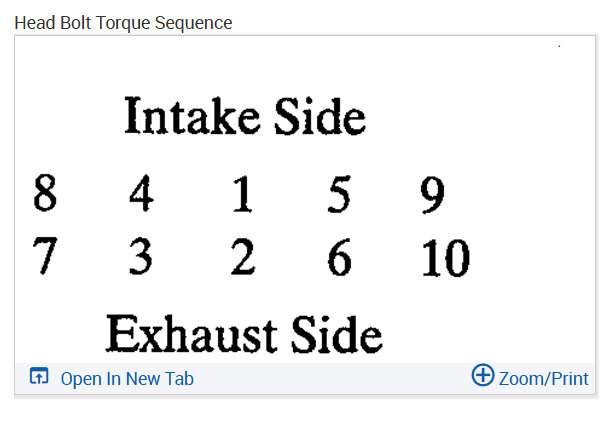

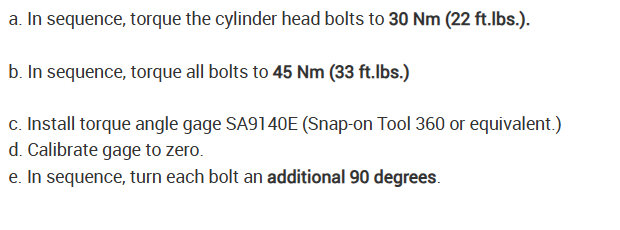

Here are the torque specs and sequence. Check out the images (below). Let us know if you need anything else.
