reverse light switch location?

2005 CHEVROLET BLAZER
Avatar
KEEVAN MCCRUM
  • MEMBER
  • 1 POST
Where is the back up light switch and can I get at it to adjust it. I looked under neath and removed the console but could not remove the shift lever boot.
Dec 29, 2009 at 3:58 PM
Advertisement
Avatar
BLUELIGHTNIN6
  • CERTIFIED EXPERT
  • 16,542 POSTS

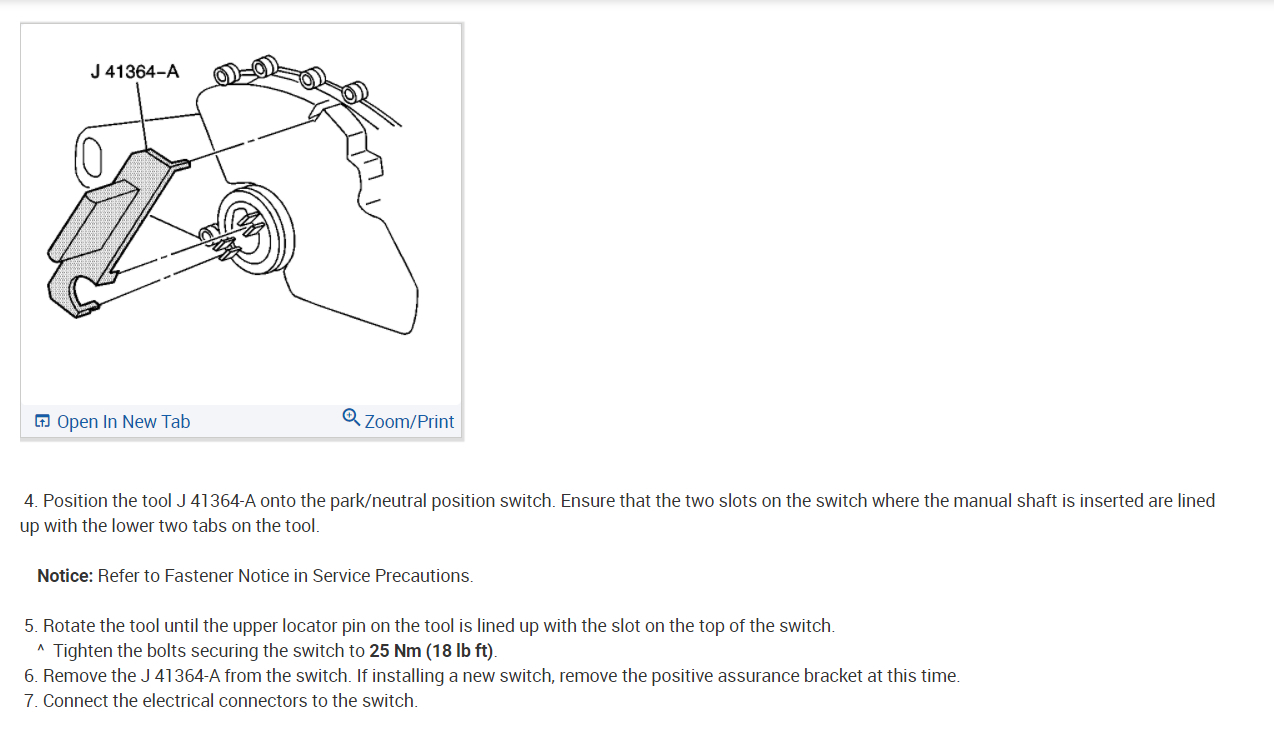

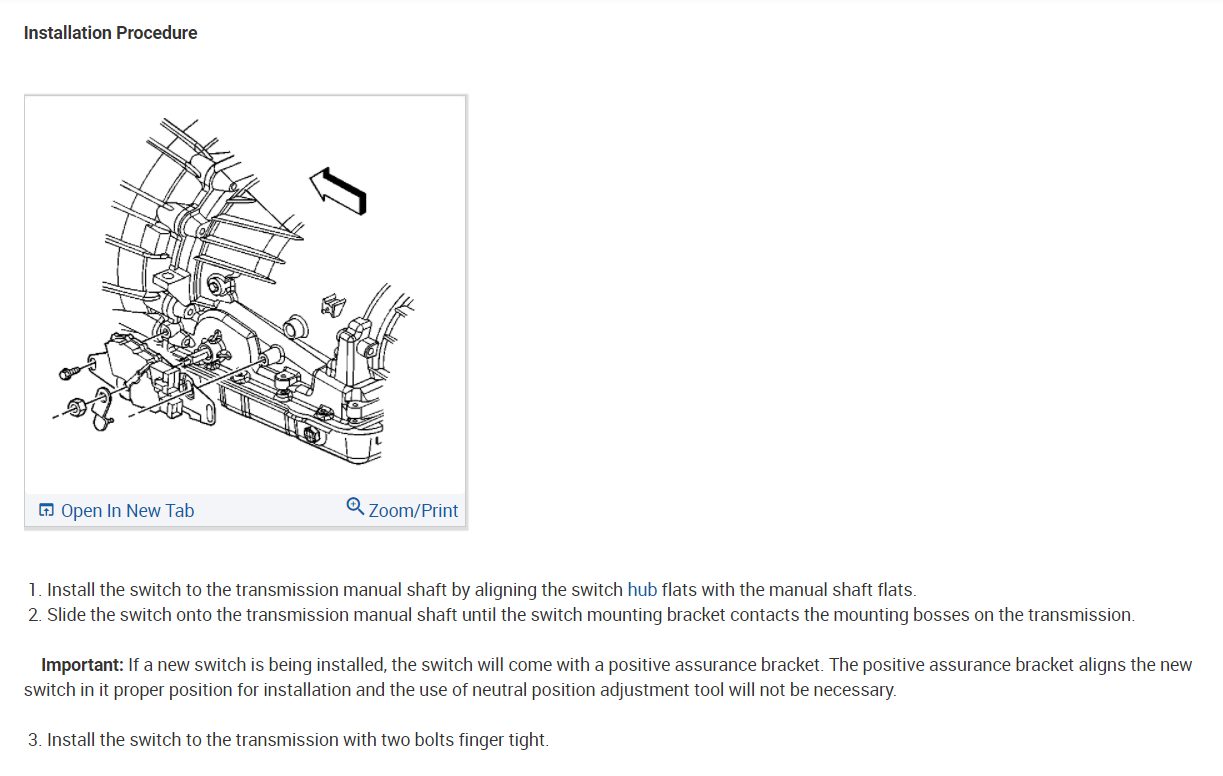

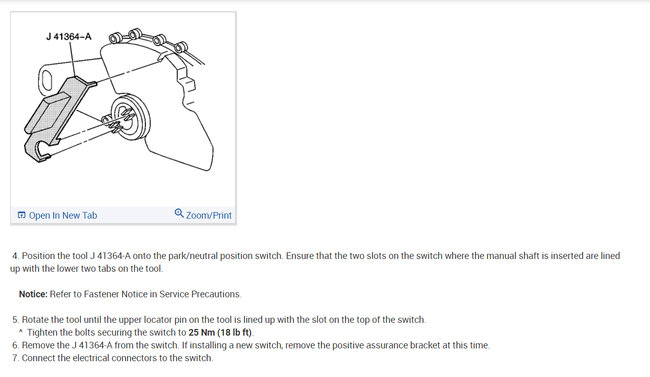

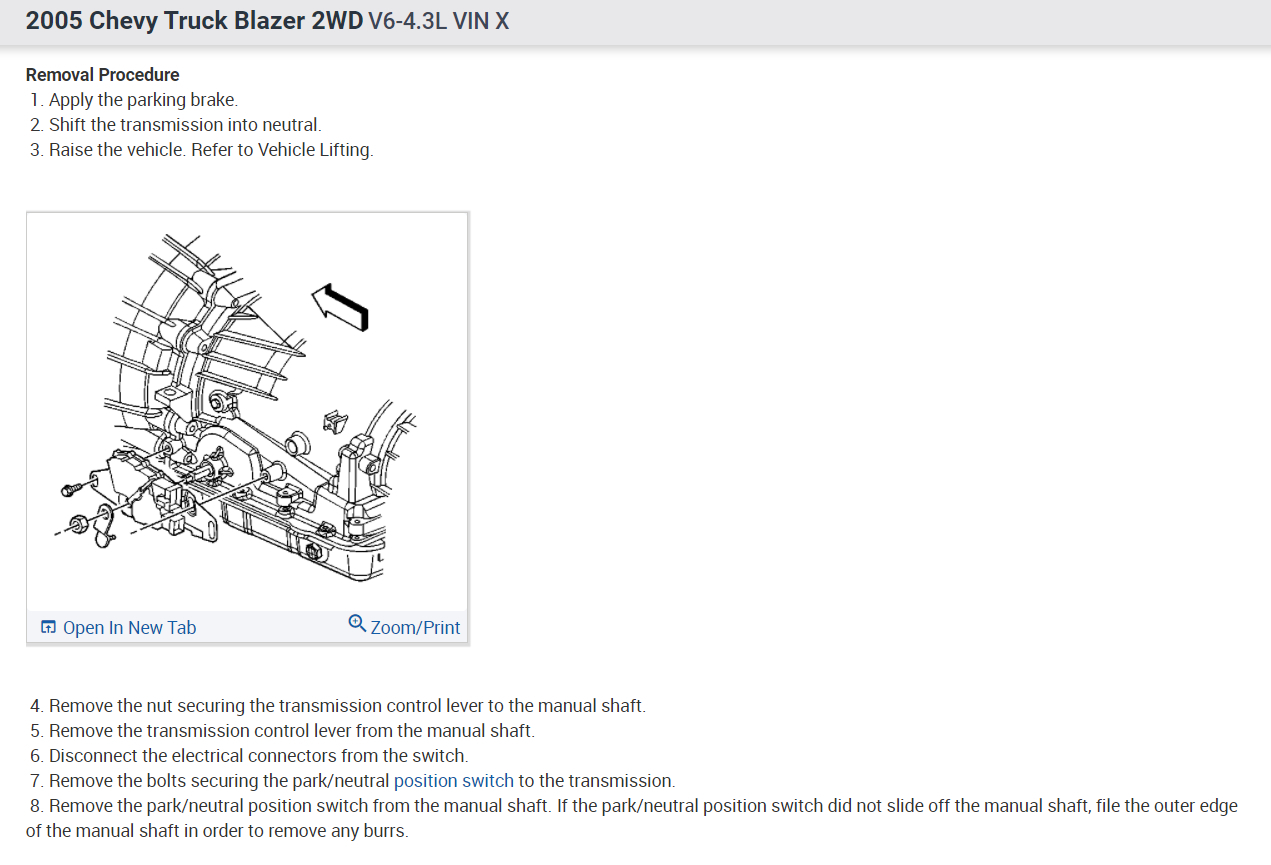

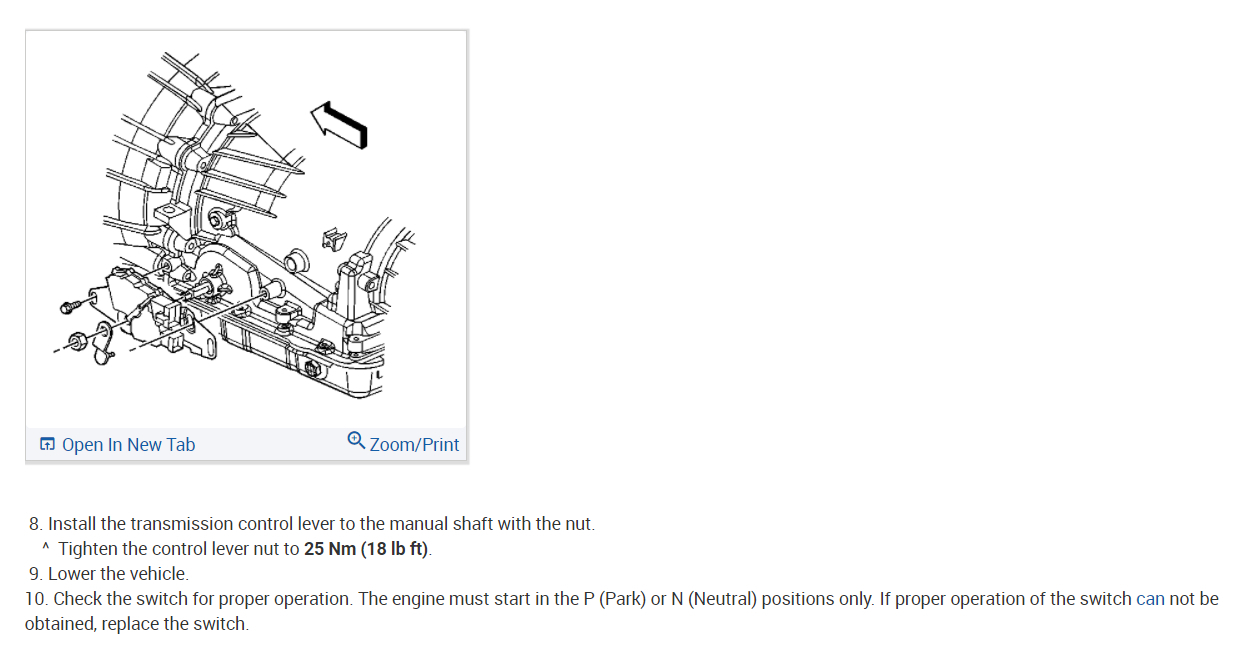

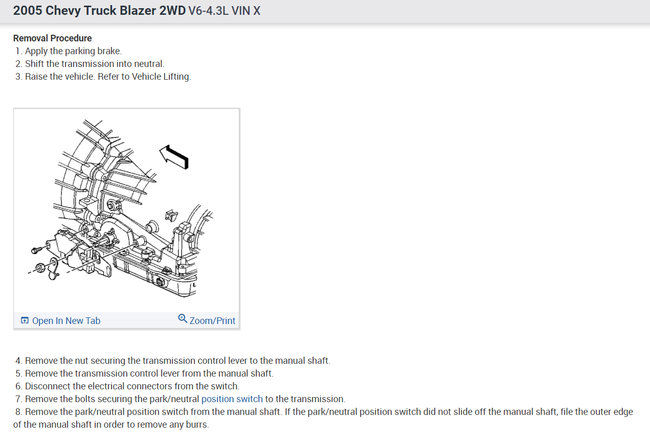

the the back-up switch is actually integral with the Park/Neutral Position Switch , which is located on the left side of the transmission. If back up lamps are not working and you have traced it to the switch, the switch will most likely need replaced. Check out the diagrams (Below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Dec 30, 2009 at 1:31 AM
Avatar
2CP-ARCHIVES
  • MEMBER
  • 4,540 POSTS
How to replace reverse light switch?
Jul 28, 2021 at 1:42 PM (Merged)
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

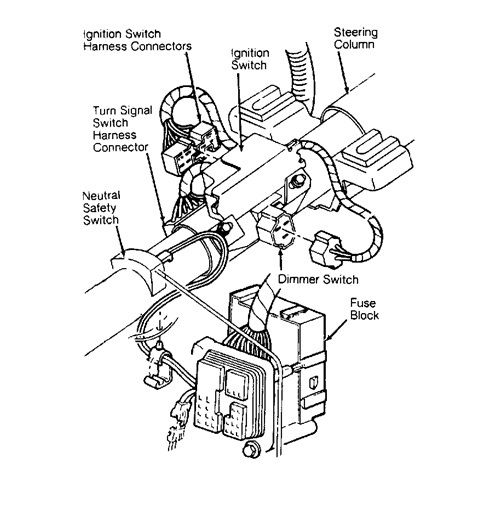

For an automatic the reverse lamps is part of neutral switch. On top of steering column, under the dash. I dont have remove/install procedure. Everything should be in neutral. The tang on the switch should go down in hole on the steering column. Some adjustment may be required by moving the switch one way or the other.
Image (Click to enlarge)
Attached Media
Jul 28, 2021 at 1:42 PM (Merged)
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
I forgot to ask, did you check applicable fuses and wiring circuits?
