radio wiring diagrams

2001 CHEVROLET TRUCK
120,000 MILES • V8 • 4WD • AUTOMATIC
Avatar
MATT09
  • MEMBER
  • 1 POST
I took my factory radio out and i wanted to put it back in and when i tried it wouldn't turn back on and half of my lights on the dashboard wouldn't work i need a wiring diagram for it.
Jan 29, 2009 at 10:35 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

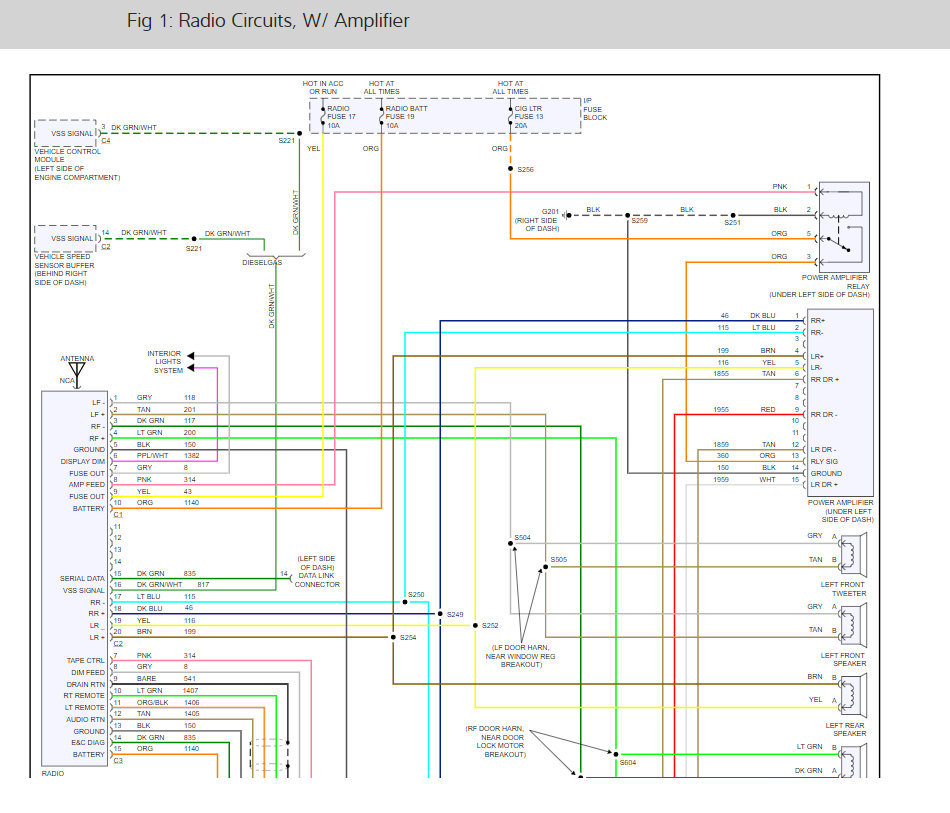

The picture. You can see some of the voltage circuits with this guide. (diagrams below)

https://www.2carpros.com/articles/how-to-check-wiring

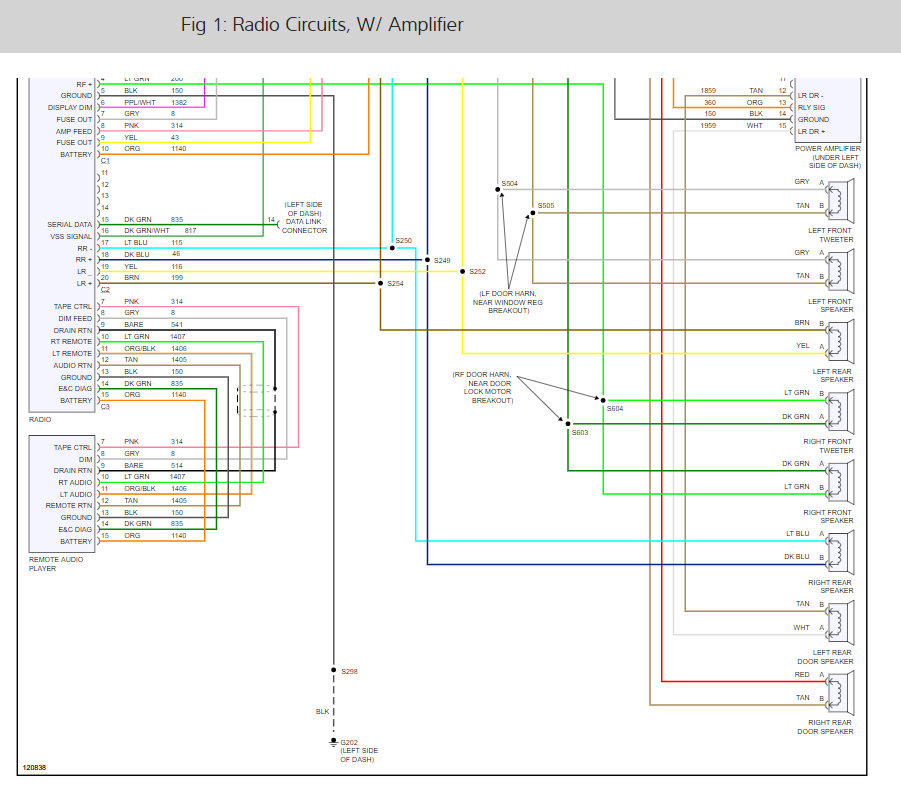

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Images (Click to enlarge)
Attached Media
Attached Media
Jan 29, 2009 at 12:29 PM
