LOCATION OF FUSE BOXES

2005 SUZUKI XL7

25,300 MILES • 6 CYL • 4WD • AUTOMATIC

LARRYSDOME

MEMBER
1 POST
FOLLOW

IS THERE MORE THAN ONE FUSE BOX.

Mar 17, 2009 at 1:39 AM

STRAILER

CERTIFIED EXPERT
53,855 POSTS

Hello,

Here is a guide to show you how to check the fuses.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

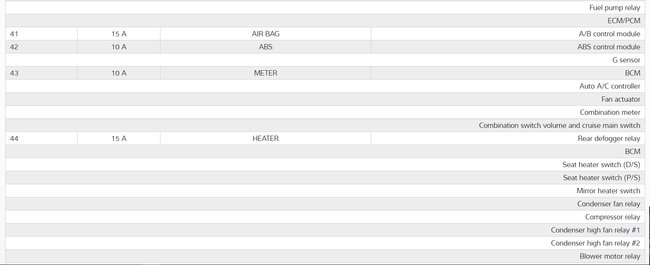

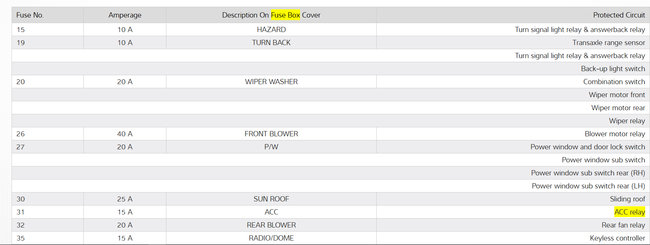

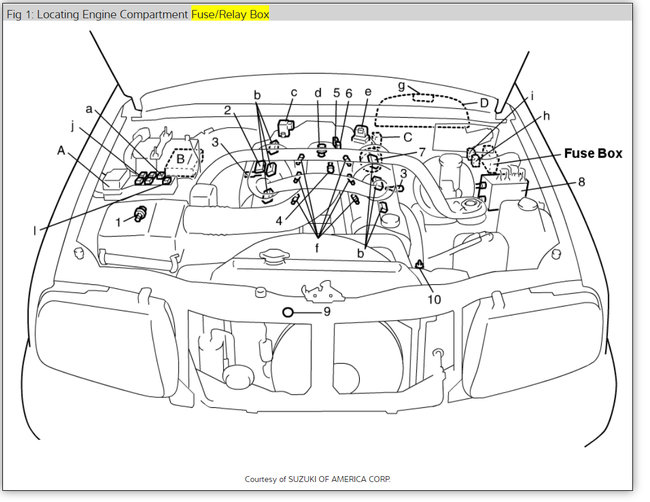

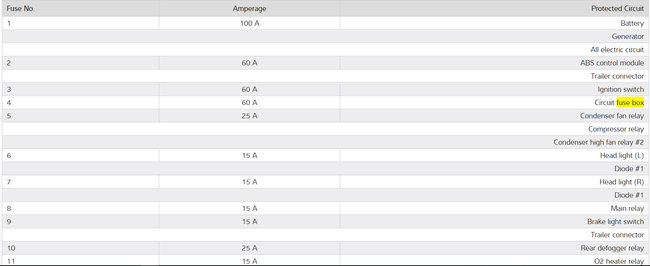

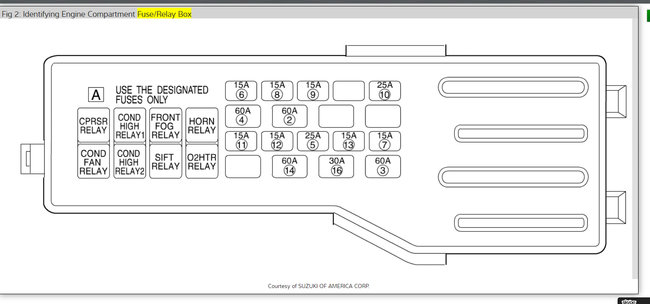

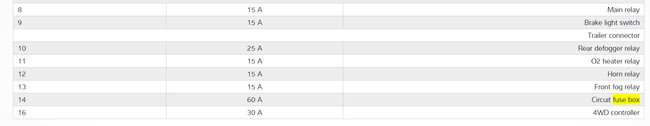

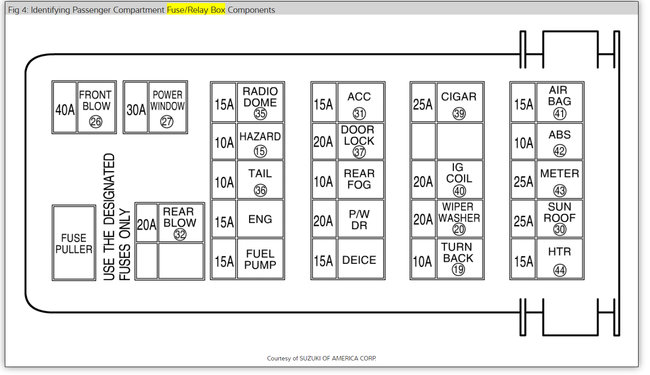

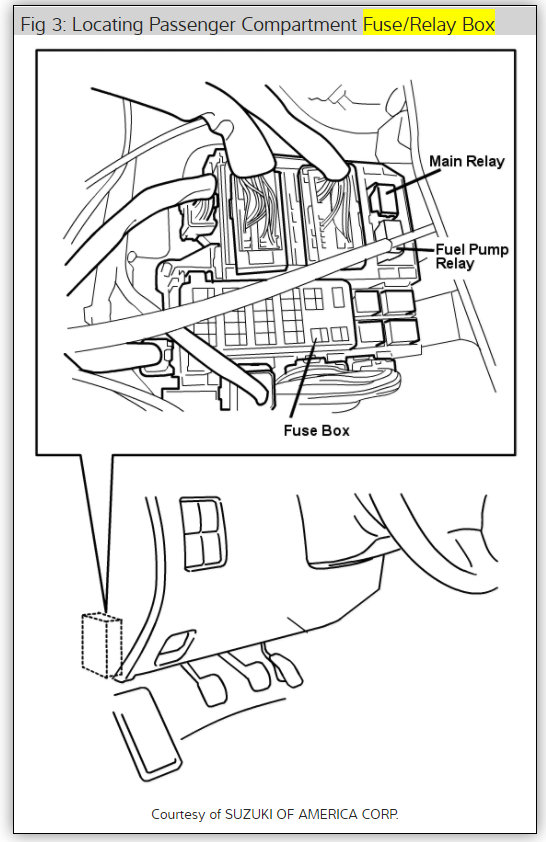

Here is the location of the fuses (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken

Images (Click to enlarge)
