Engine Vacuum Diagrams Please?
Dec 7, 2018 at 7:07 PM
Engine Vacuum Diagrams
1985 CHEVROLET S-10
MSMITH7060
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello, I am Danny.

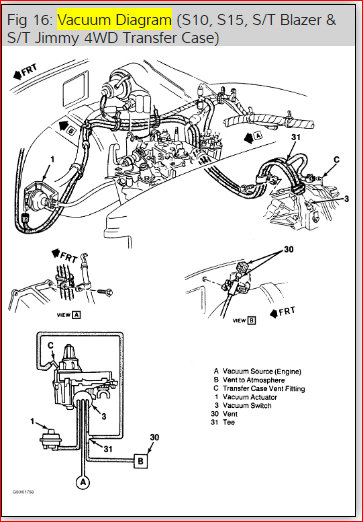

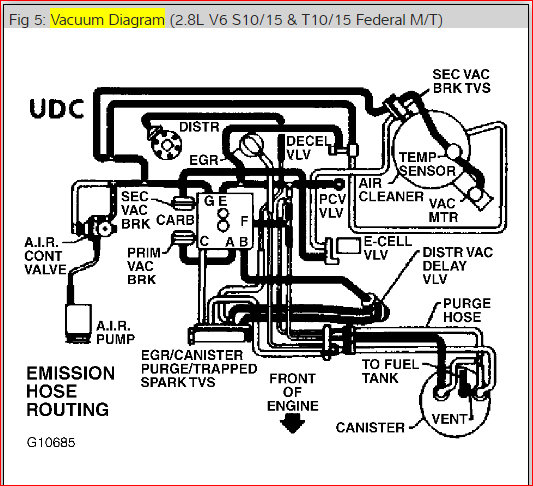

Here are the vacuum diagrams you requested. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Hope this helps and thanks for using 2CarPros.
Danny-
Here are the vacuum diagrams you requested. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Hope this helps and thanks for using 2CarPros.
Danny-
Images (Click to enlarge)
Dec 7, 2018 at 7:46 PM
